2 PRESENTATION
The purpose of a BYPASS is to connect the load to the mains with minimal interruption to allow the
ordinary and extraordinary maintenance of the UPS.
The BYPASS makes it possible to switch the utilities connected to it onto the main power line in the event
that the UPS is switched off or becomes blocked.
The BYPASS is supplied for installation in rack cabinets or for installation on the wall or above the 10 or
16A UPS (BOX).

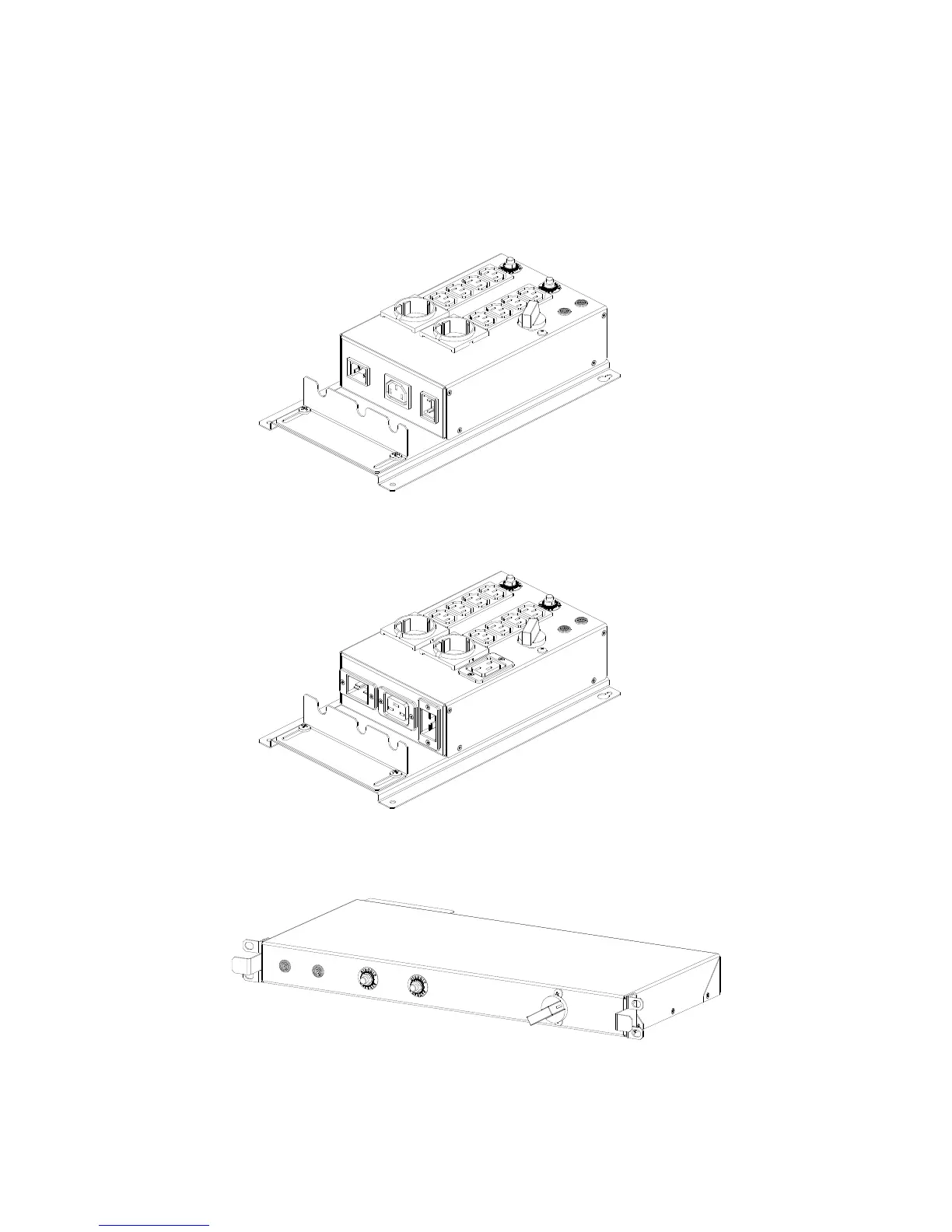

Rack
Box 16A
Box 10A
N.B. The plug/outlet configurations vary depending on the versions.
