3.4 Connecting the BYPASS
MAINS INPUT
LOAD
TO UPS OUTPUT TO UPS INPUT
LOAD
LOAD
TO UPS INPUT
TO UPS INPUT
TO UPS OUTPUT
MAINS INPUT
MAINS INPUT
TO UPS OUTPUT

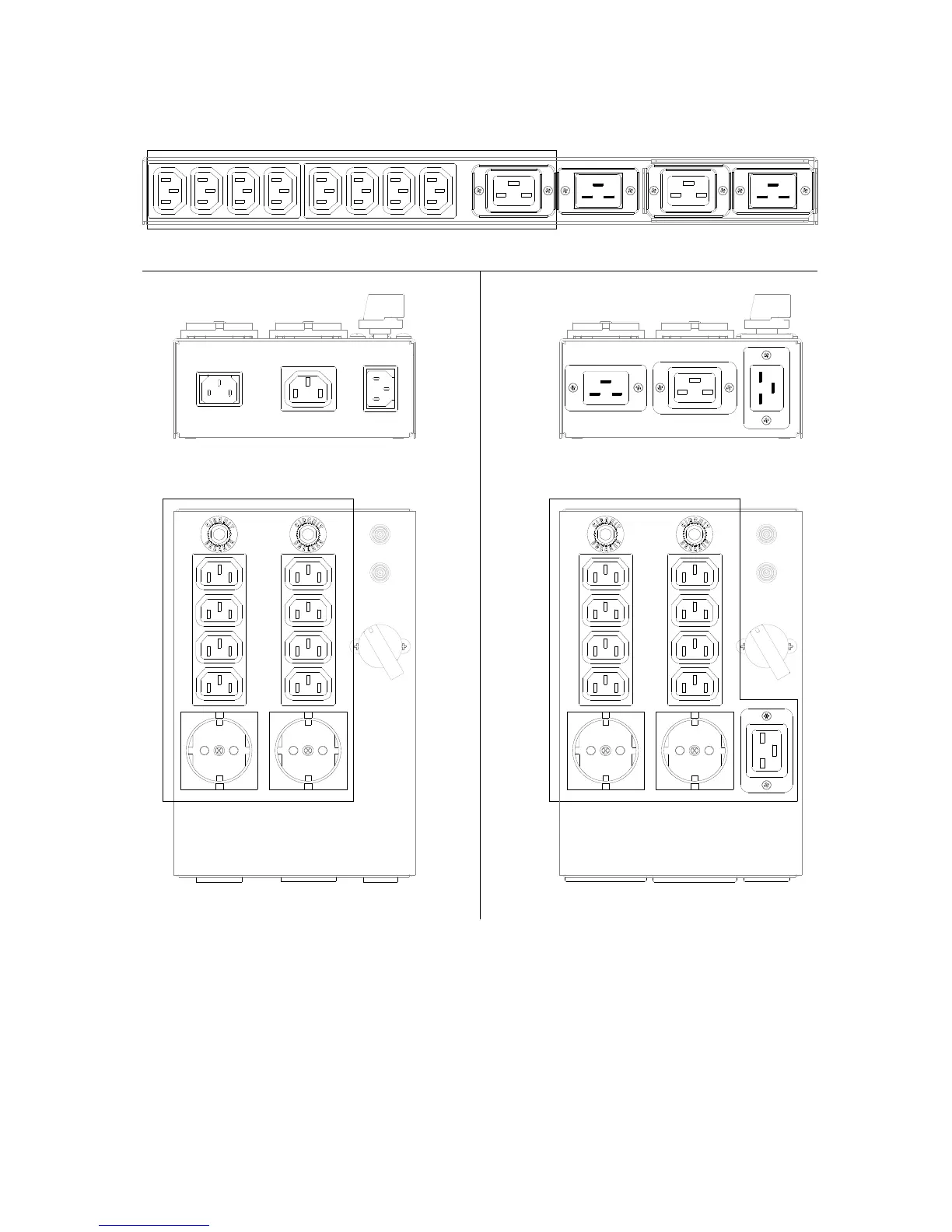

10A Version 16A Version
Rack version: rear view
N.B. The plug/outlet configurations vary depending on the versions.
1. Check that the SWITCH is in the “BYPASS” position
2. Connect the load to the output outlets (Load)
(N.B. The plug/outlet configurations vary depending on the versions)
3. Connect the UPS input to the outlet located on the BYPASS marked “TO UPS INPUT”
4. Connect the UPS input to the plug located on the BYPASS marked “TO UPS OUTPUT”
5. Connect the power cable to the plug marked “MAINS INPUT”
