3.2 Wall version (BOX)

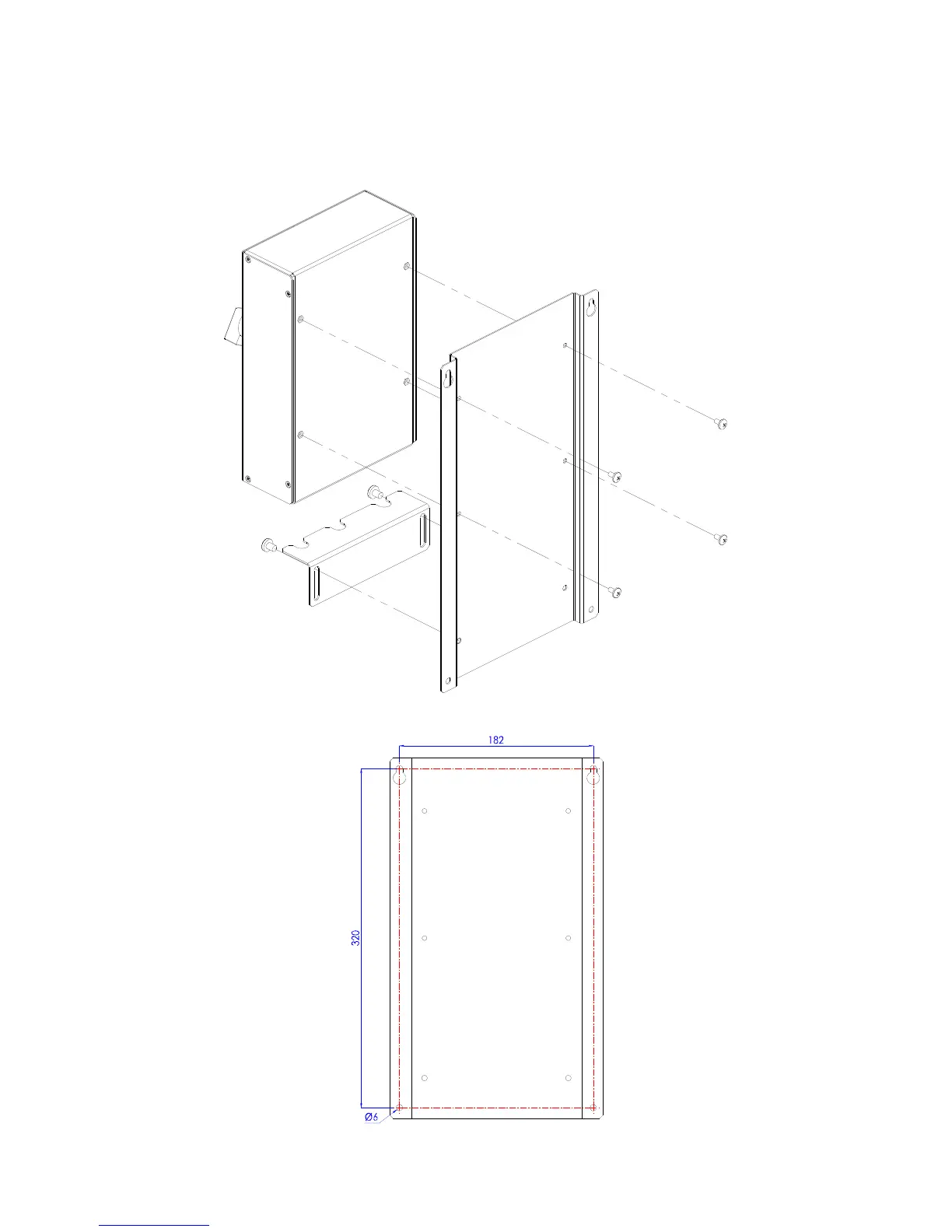

Attach the Bypass to the wall bracket as shown in the figure below, position the slotted L-bracket without
fully tightening the two screws.
The figure below shows the drilling template for installing the BYPASS on the wall.
