Technical description of the burner
3.9 Minimum furnace dimensions
The firing rates were set in relation to certified test boilers.

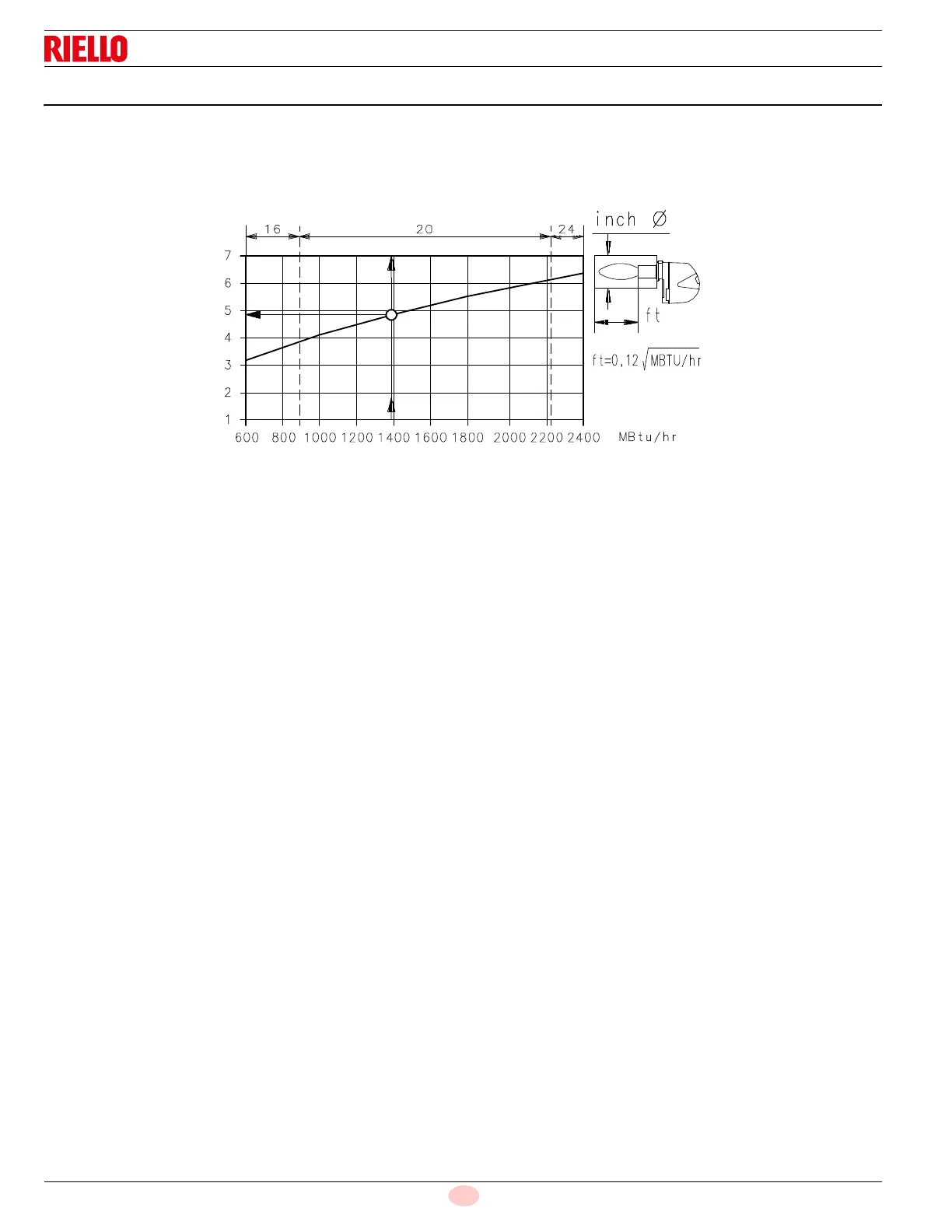

Fig. 5 indicates the diameter and length of the test combustion
chamber.
Example
Output 1388 MBtu/hr: diameter 20 inch - length 4.9 ft
D2918
Length (ft)
Furnace dimensions
Diameter (inches)
Fig. 5
