21

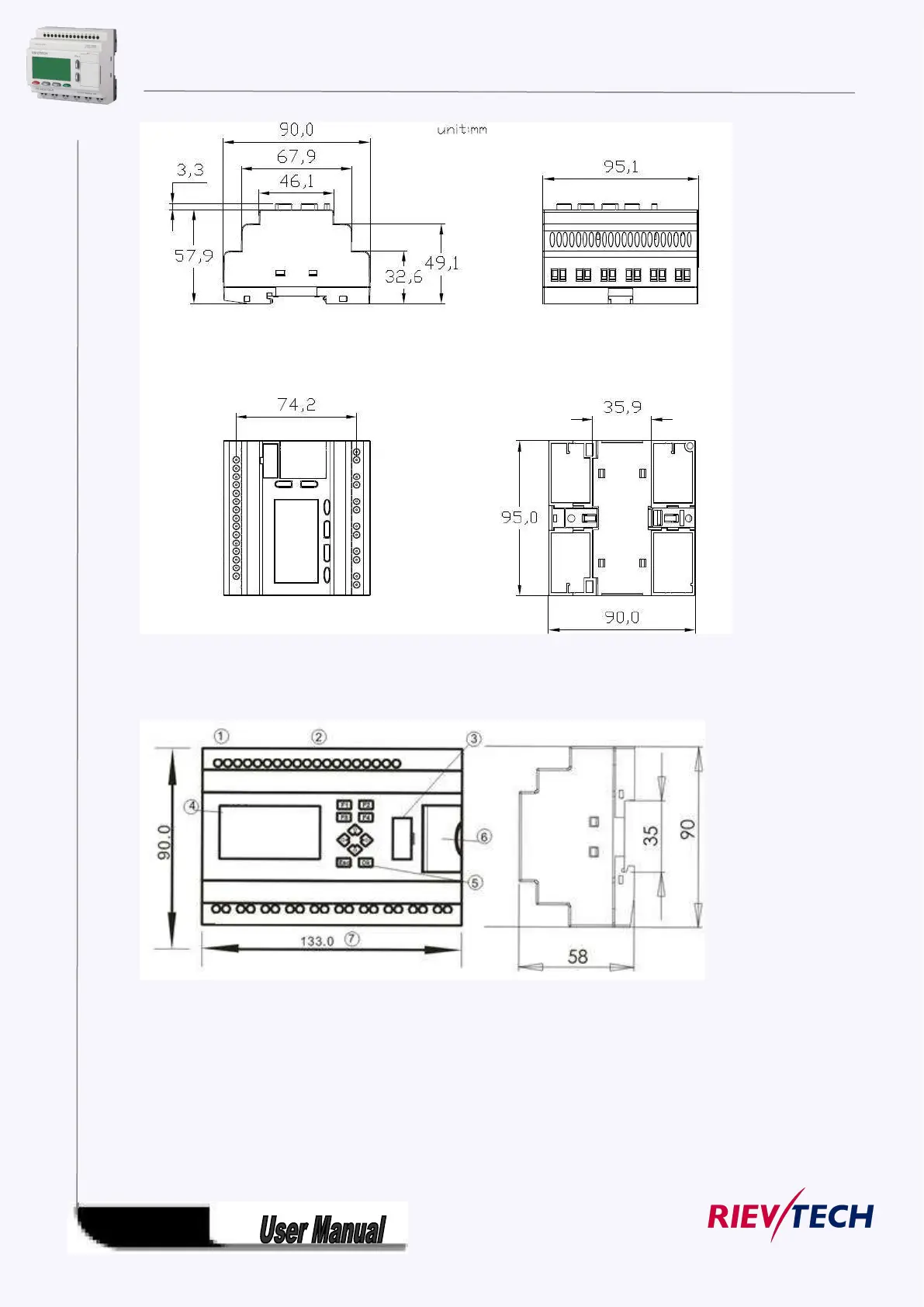

5. PR-24 series CPU
1. Power supply 2.Input 3. Program/RS232 port 4.HMI/LCD panel 5.keypad 6.Extension/RS485
port 7.Output
6. ELC-22 Ethernet CPU
