7.3 Ventilation system
Requirements for a Ventilation system
A Ventilation system supplies fresh air into a room and exhausts the contaminated

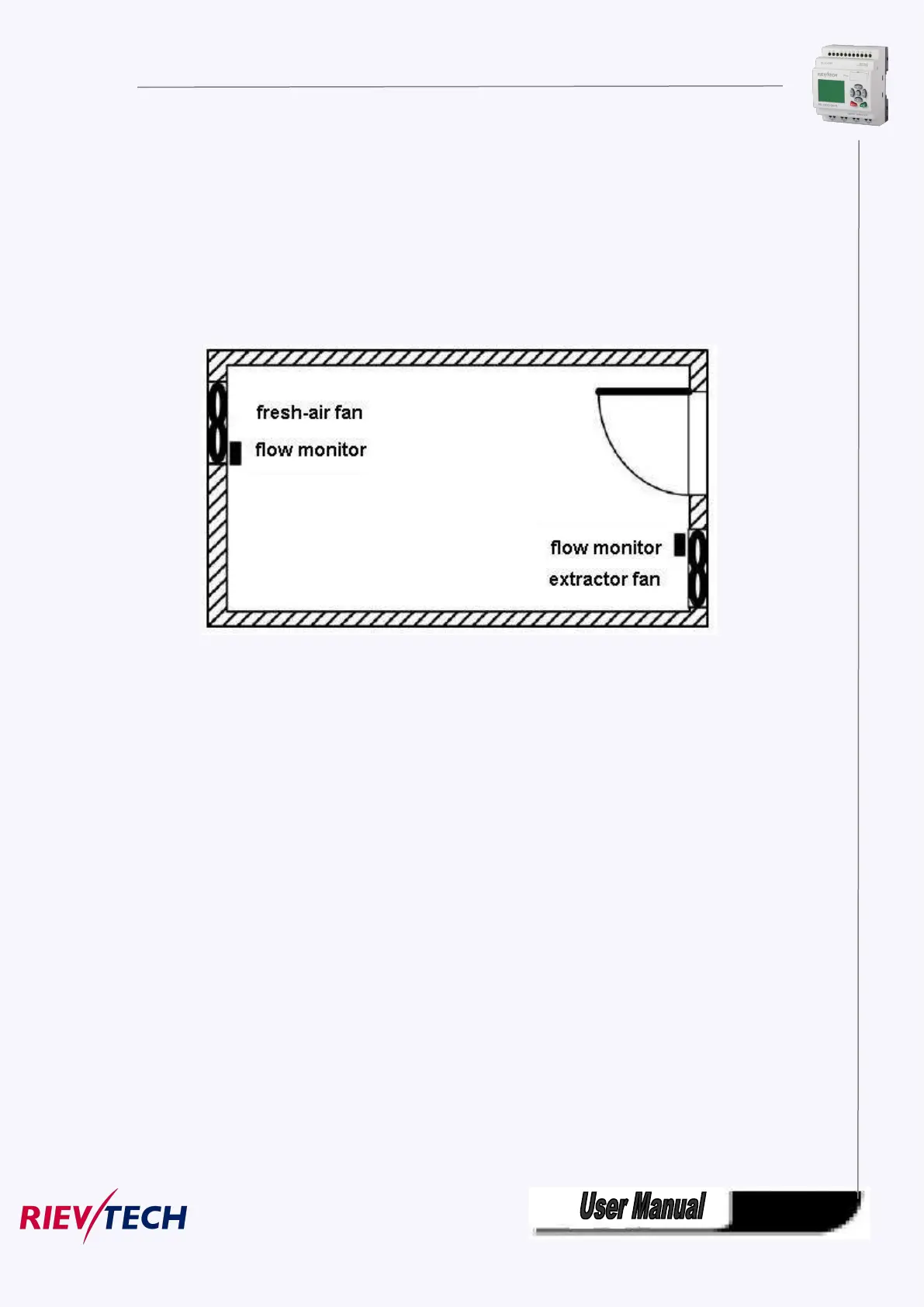

air. Let us look at the following sample system:
A room contains an extractor fan and a fresh-air fan.
Each fan is monitored by means of a flow sensor.
The pressure in the room may rise above the atmospheric pressure.
The fresh-air fan may only be switched on if the flow sensor signals the safe
operational state of the extractor fan.
A warning lamp indicates failure of one of the fans.
7.3.1 Standard solution
The control circuit diagram of Ventilation system formerly as follows:
