I Main Unit

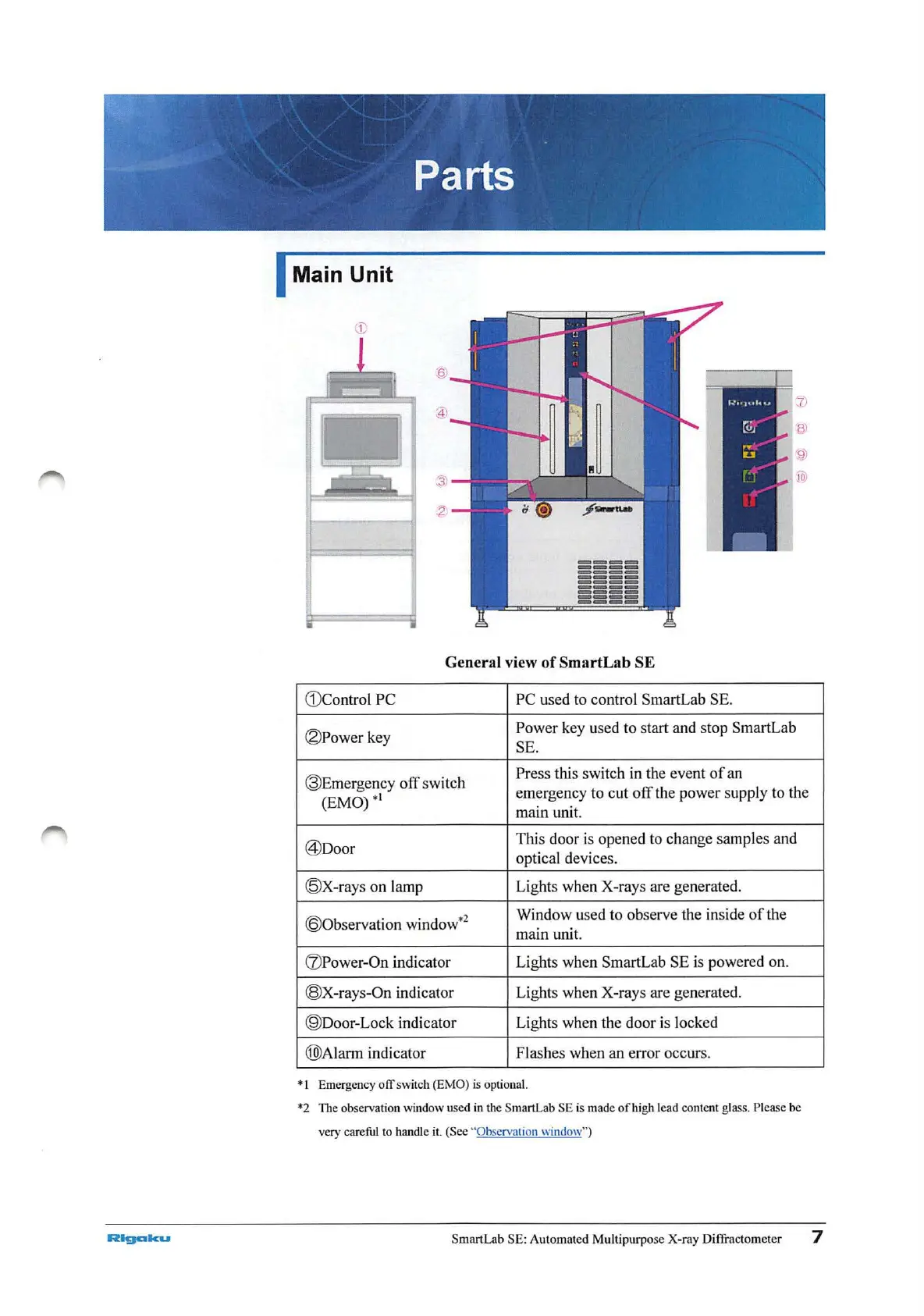

General view
of
SmartLab SE
G)Control PC PC used to control SmartLab SE.
® Power key
Power key used to start and stop SmartLab
SE.
@E
mergency
off
sw
itch
Press this switch in the event
of
an
(EMO)
*
1
emergency to cut
off
the power supply to the
main unit.
@Door
This door is opened to change
sa
mples and
optical devices.
@X
-rays on lamp
Lights when X-rays are generated.
@Observation window*
2
Window used to observe the inside
of
the
main unit.
a)
Power-On indicator Lights when SmartLab
SE
is powered on.
®X
-rays-On indicator Lights when X-rays are generated.
@Door-Lock indicator Lights when the door is locked
@)A
larm indicator Flashes when an error occurs.
* I Emergency
off
sw
itch (EMO)
is
optional.
*2
The observation window used in the SmartLab SE is made
of
high lead co
nt
ent glass. Please be
very careful to handle it. (See
"Observation window")
