Parts
Q.6
1J:i;
~
TI)
<!!
'
(
15
'

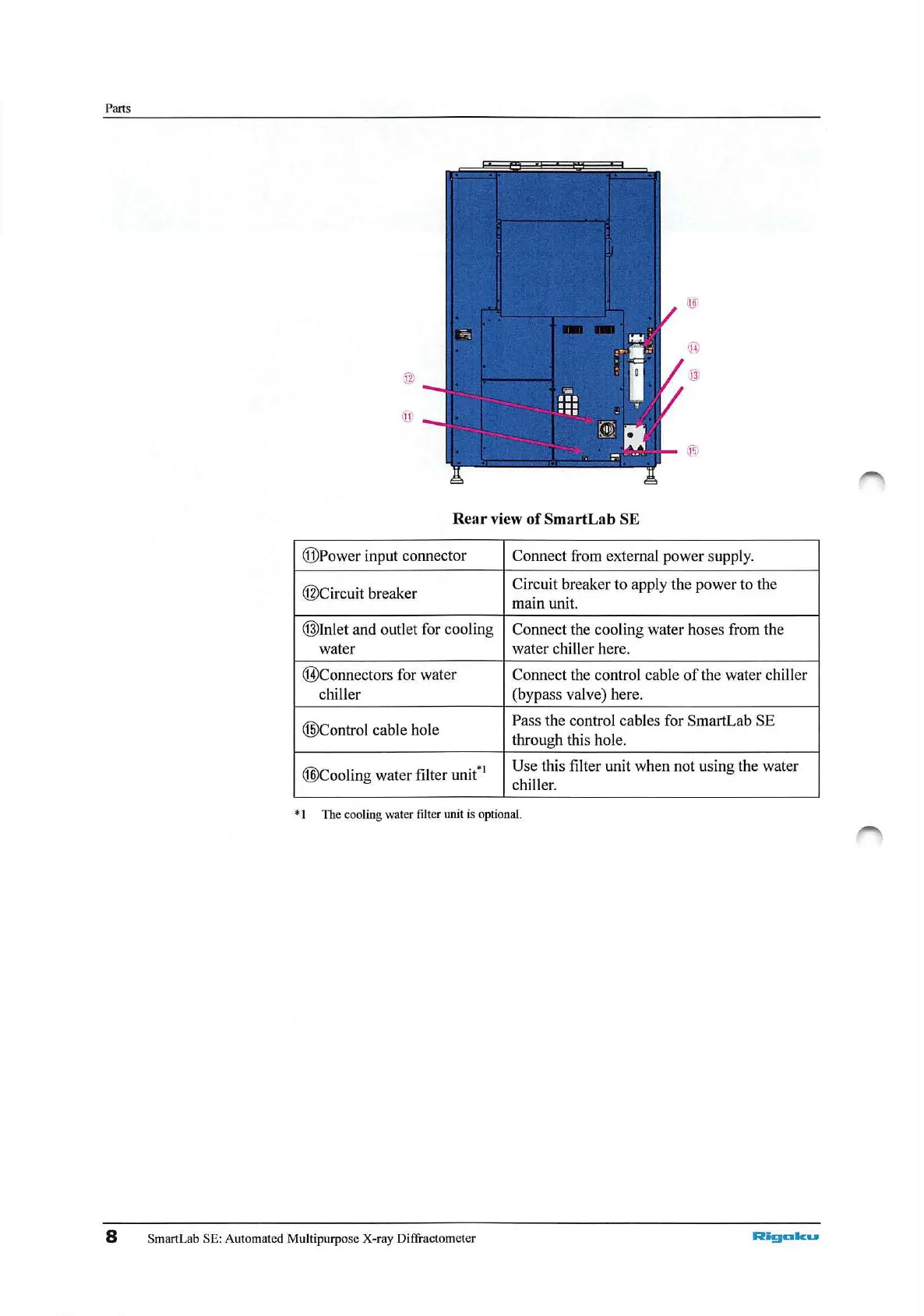

Rear view
of
SmartLab
SE
@Power
input connector
Connect from external power suppl
y.
@C
ircuit breaker
Circuit breaker to apply the power to the
main unit.
@Inlet and outlet for cooling Connect the cooling water hoses from the
water
water chiller here.
@Connectors for water
Connect the control cable
of
the water chiller
chiller (bypass valve) here.
@)Control cable hole
Pass the control cables for SmartLab SE
through this hole.
@Cooling water filter unit.,
Use this filter unit when not using the water
chiller.
* I The cooling water
fi
lt
er wlit is optional.
8
SmartLab SE: Automated Multipurpose X-ray Diffractometer
