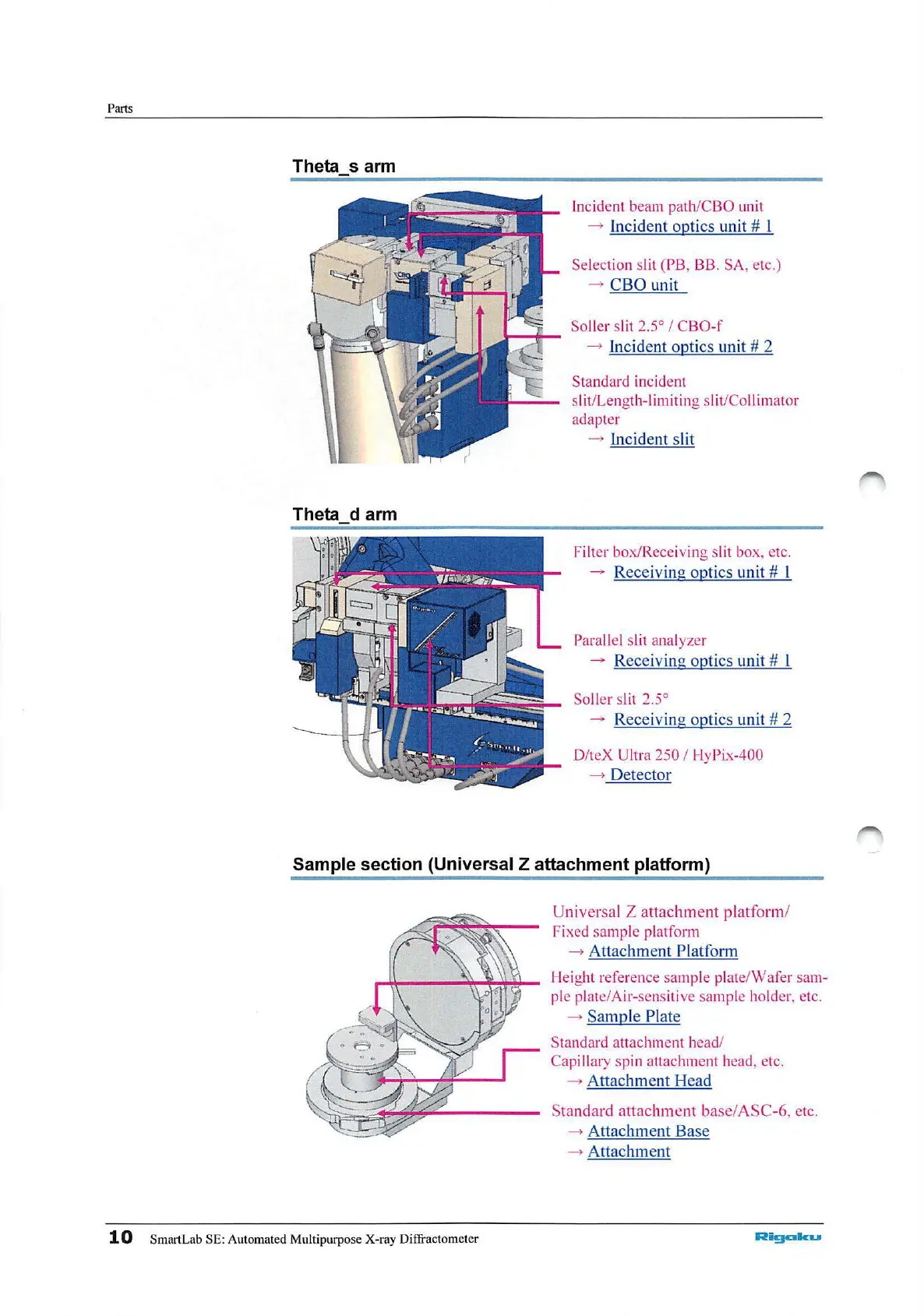

Parts
Theta_s arm
Incident beam path/CBO un it
- lncident optics unit # l
Selection sl it ( PB . BB. SA, etc.)
- CBO unit
Soller slit 2. 5° I CBO-f
- Incident optics unit # 2
Standard incident
s
li t/Lengt h- l im iting slit/Collimator
adapter
- lncident sl it
Fi lter box/Rece iv ing slit box, etc.
- Receiving optics unit # l
Para! le i slit analyzer
- Receiving optics unit # l
So ll er sl it 2. 5°
- Receiving optics unit # 2
D/teX Ultra 250 I HyPix-400
- Detector
Sample section (Universal Z attachment platform)
10 SmartLab SE: Automated Multipurpose X-ray Diffractometer
U ni versal Z attachment platfonn/
Fi xed sample platform
- Attachment Platform
Height reference sample pl ate/Wafer sam-
ple plate/Air-sensitive sample
ho lder, etc.
- Sample Plate
Standard attachment head/
Ca pillary sp in attachment head. et c.
-+ Attachment Head
Standard attachment base/ ASC-6, etc.
-+ Attachment Ba se
-+ Attachment
