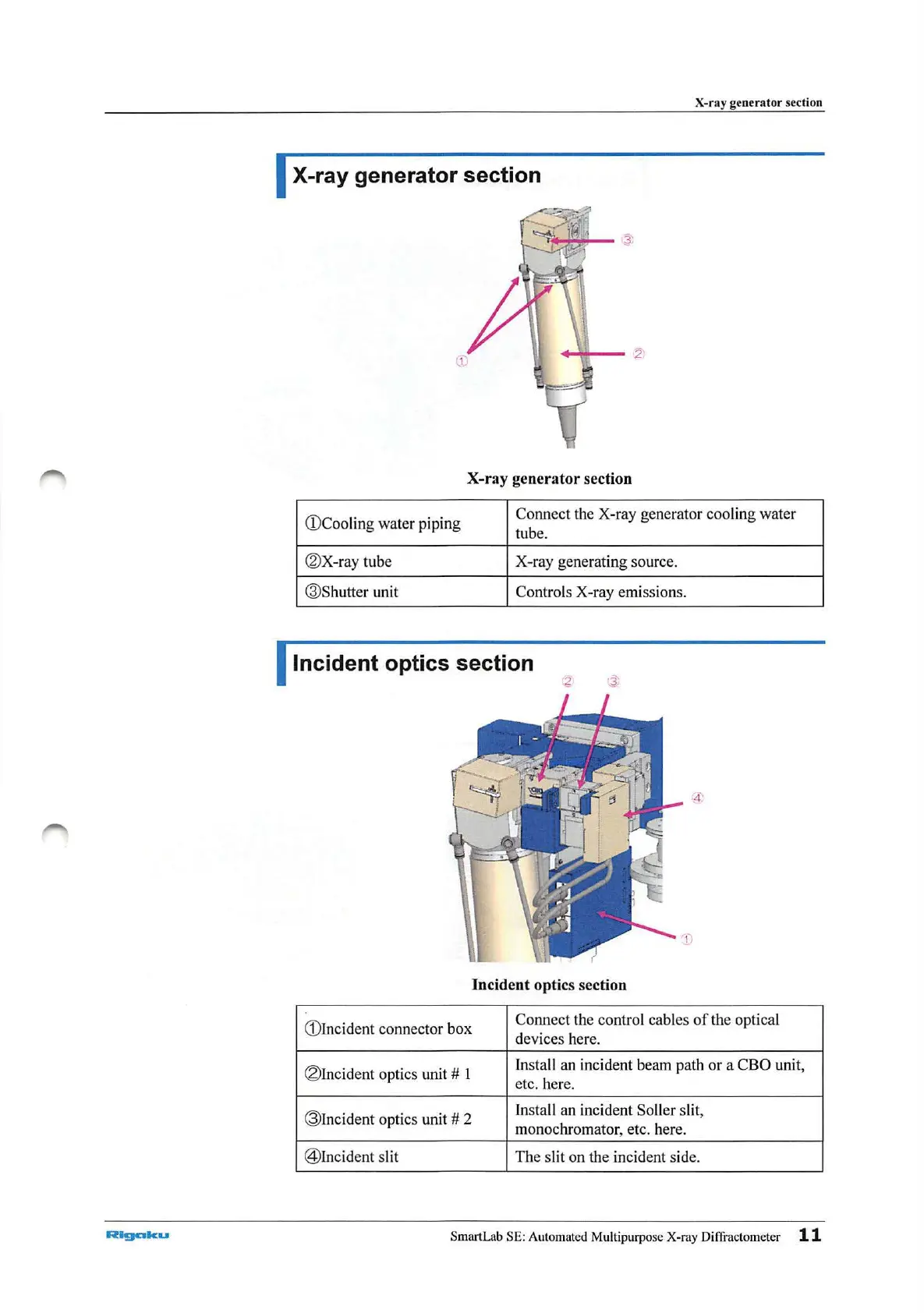

X-ray generator section
I X-ray generator section
~ 1
2
X-ray generator section
CDC
ooling water piping
Connect the X-ray generator cooling water
tube.
®X
-ray tube X-ray generating source.
@S
hutter unit
Controls X-ray emissions.
I incident optics section
2
4
Incident optics section
G)
Incident connector box
Connect the control cabl
es
of
the optical
devices here.
® Incident optics unit # 1
In
stall an incident beam path
or
a
CBO
unit,
etc. here.
@ Incident optics unit # 2
In
stall an incident Soller slit,
monochroma
tor
, etc. here.
@Incident slit
The
s
li
t on the incident side.
SmartLab SE: Automated Multipurpo
se
X-ray Diffractomet
er
11
