Optical Device

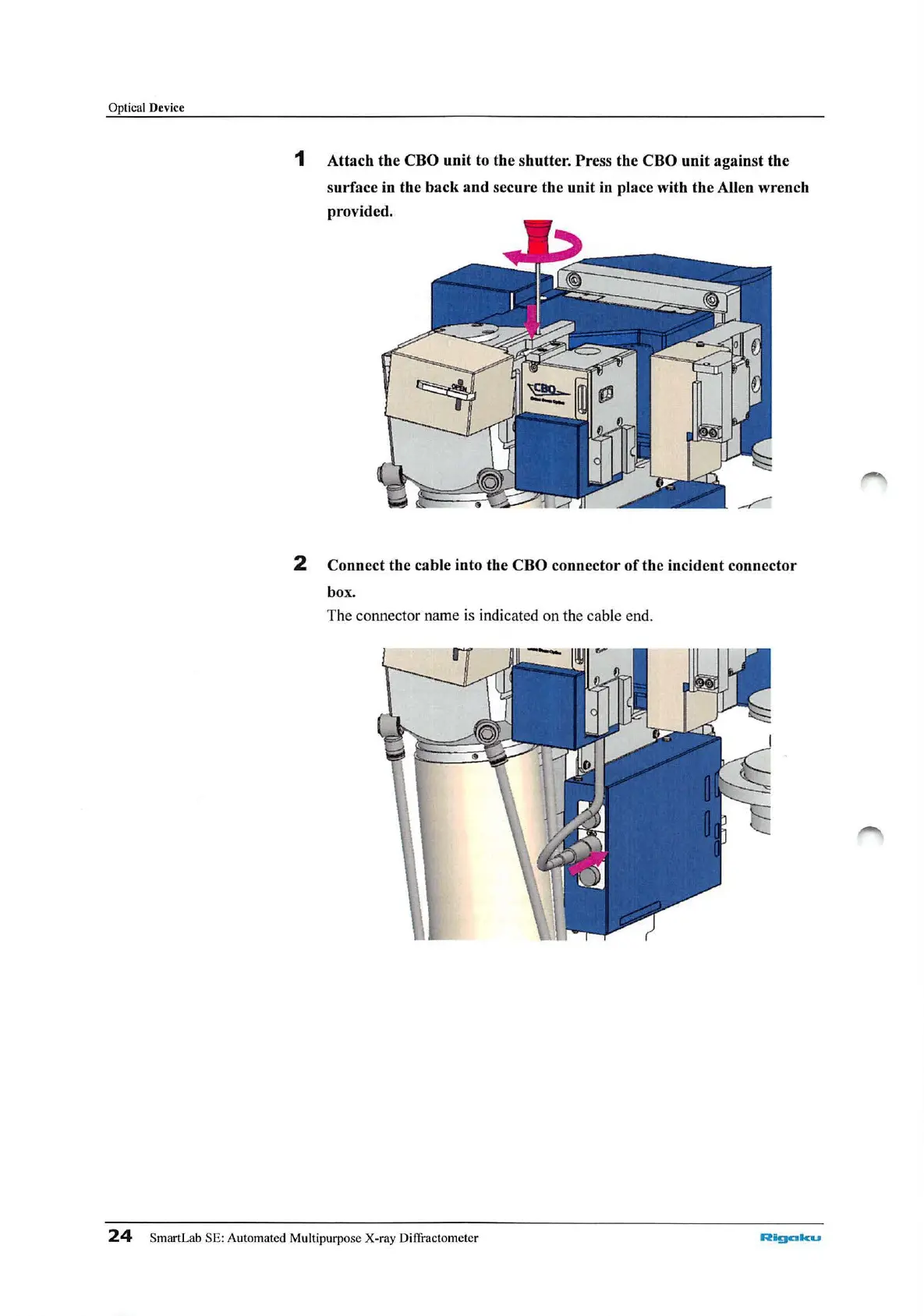

1 Attach the CBO unit to the shutter. Press the CBO unit against the
surface in the
back and secure the unit in place with the Allen wrench
provided.
2 Connect the cable into the CBO connector of the incident connector
bo
x.
The connector name is indicated on the cable end.
24 SmartLab SE: Automat ed Multipurpose X-ray Diffractometer
