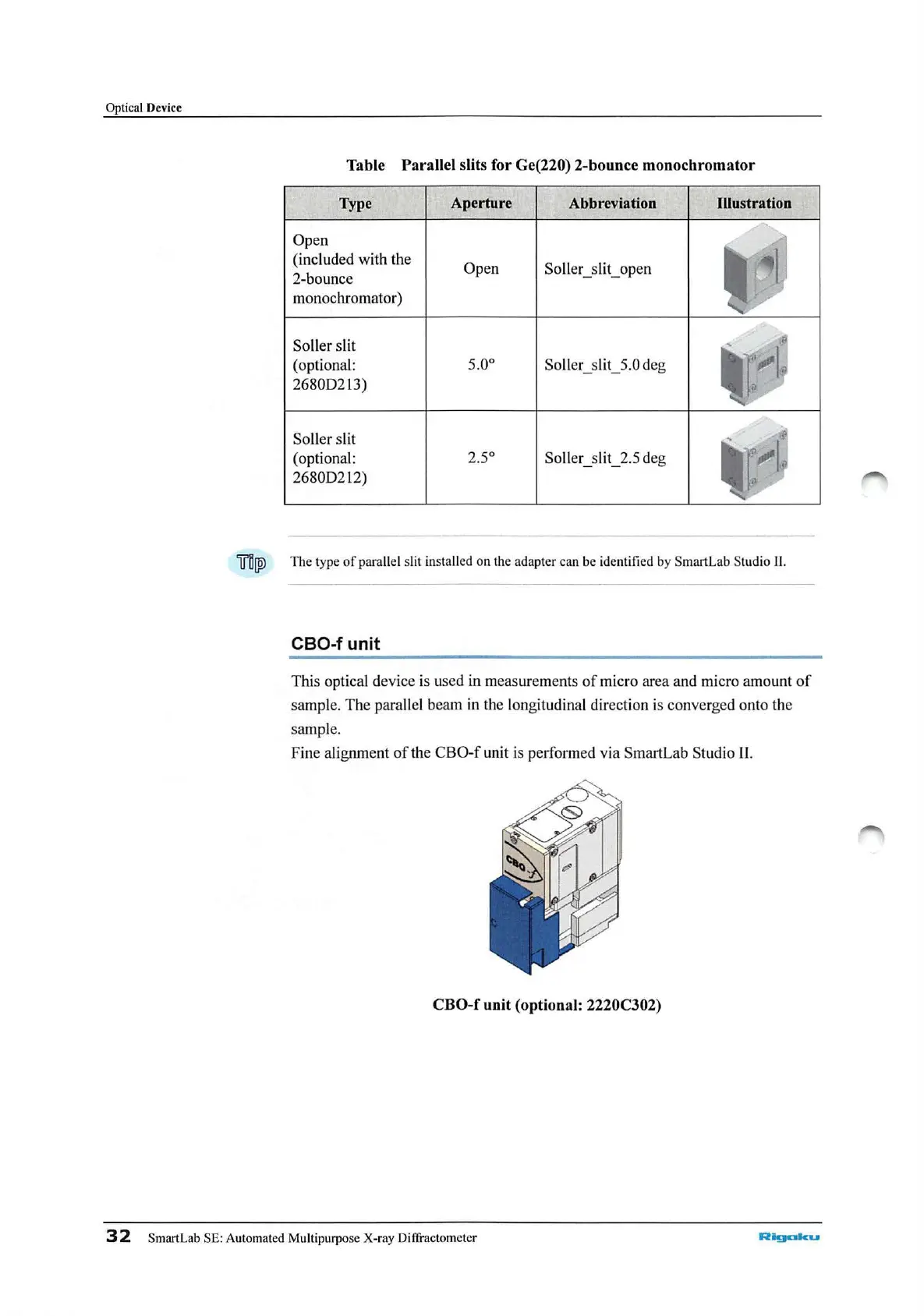

Optical Device
Table Parallel slits for Ge(220) 2-bounce monochromator
Type
Open
(included with the
2-bounce
monochromator)
Soller slit
(optional:
26800 213)
Soller slit
(optional:
268
00 212)
Aperture
Open
5.0°
2.5°
Abbreviation
Illustration
Soller_ slit_ open
Soller
_s lit_S.Odeg
Soller_slit_2.5 d
eg
'TI'!lWJ The ty pe of parallel slit installed on the adapter can be identified by SmartLab S tudio II.
CBO-f unit
This optical device is u se d in measurements of micro area and micro amount of
sa mple. The parallel beam in the longitudinal direction is converged onto the
sampl
e.
Fine alignment of the CBO-f unit is performed via Smart Lab St udio 11.
CBO-f unit ( optional: 2220C302)
