Incident optics unit II 2

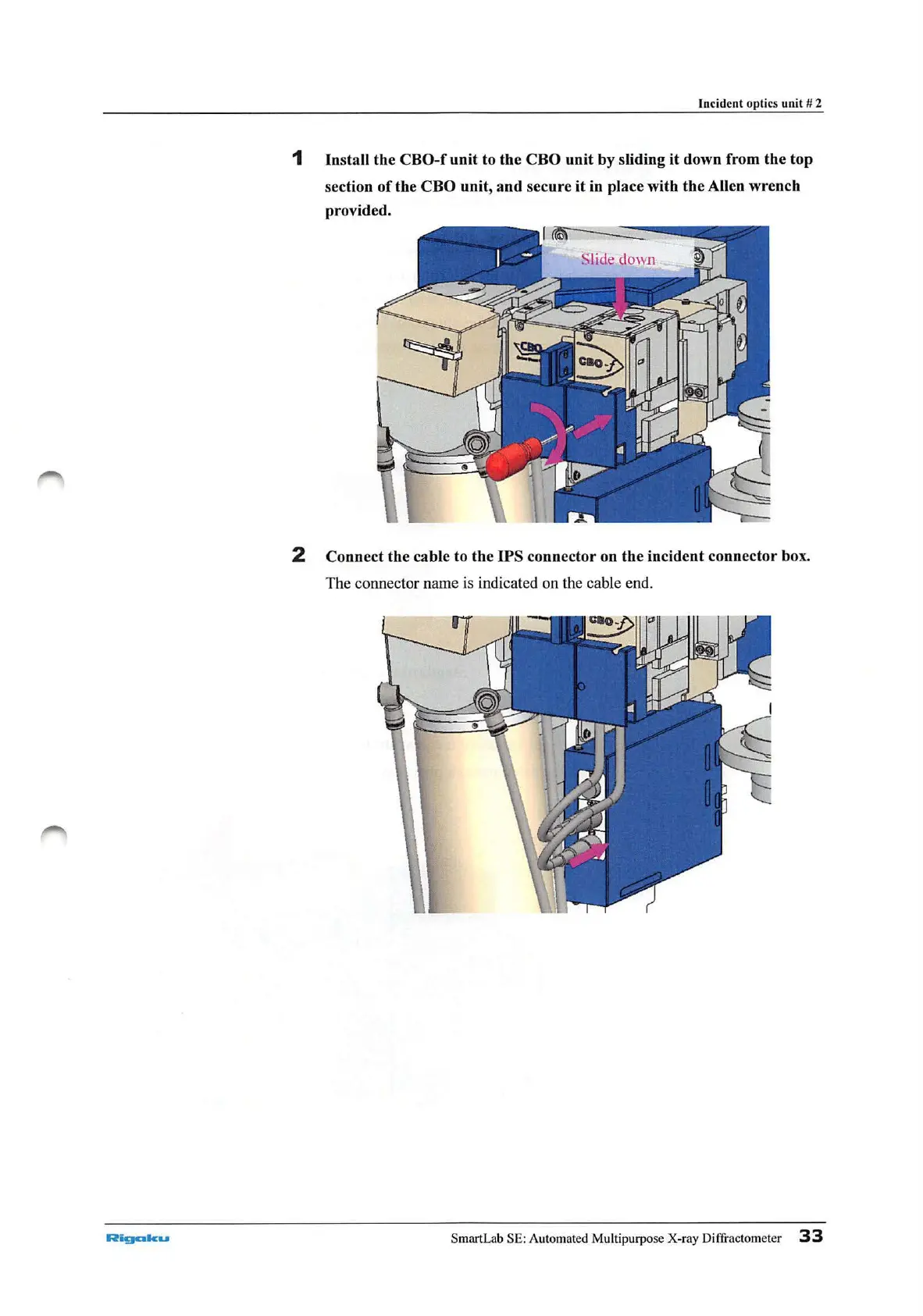

1 Install the CBO-f unit to the CBO unit by sliding it down from the top
section
of the CBO unit, and secure it in place with the Allen wrench
provided.
2 Connect the cable to the IPS connector on the incident connector box.
The connect or name is indicated on the ca ble end.
SmartLab SE: Automated Multipurpose X-ray Diffract om eter 33
