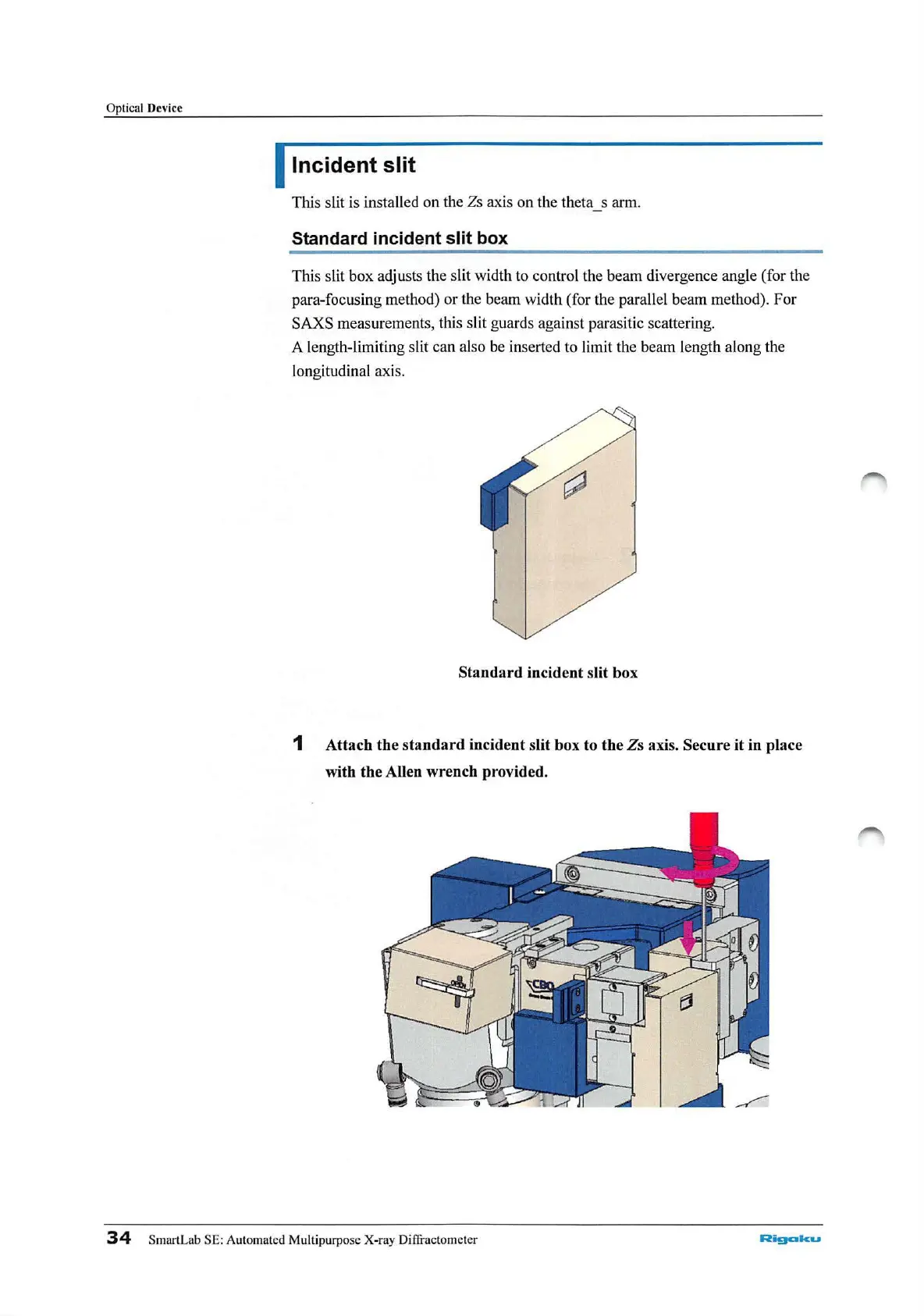

Optical Device
I Incident slit
This slit is installed
on
the Zs axis on the
th
eta s arm.
Standard incident slit box
This slit box adj usts the slit width to control the beam divergence angle (for
th
e
para-focusing method)
or
the beam wid
th
(for the parallel beam method). For
SAXS measurements, this slit guards aga
in
st parasitic scatter
in
g.
A length-limiting slit can also be
in
serted to limit the beam length along
th
e
longitudinal axis.
Standard
incident slit box
1
Attach
the
standard
incident slit box to the
Zs
axis. Secure
it
in place
with the Allen wrench provided.
