Opt
ical
De
vice

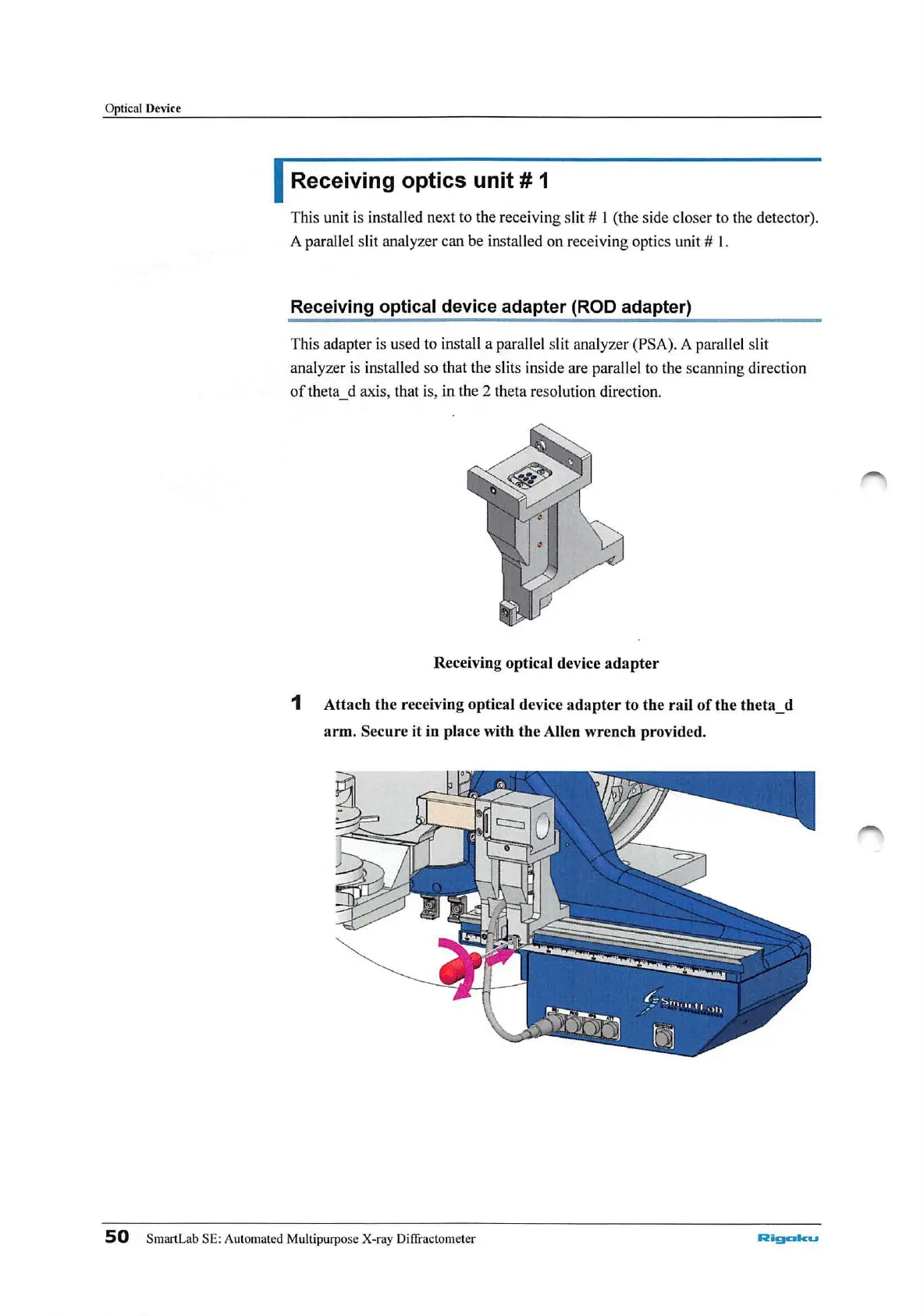

I Receiving optics unit # 1
This unit is installed next to the receiving slit # I (the s
id
e clo
se
r to the detector).
A parallel slit analyzer can be installed on receiving optics
unit#
I.
Receiving optical device adapter (ROD adapter)
This adapter is used to install a parallel slit analyzer (PSA). A parallel slit
analyzer is insta
ll
ed so that the slits inside are parallel to the scanning direction
of
theta_ d axis, that is, in the 2 theta resoluti
on
direction.
Receiving optical device
adapter
1 Attach the receiving optical device
adapter
to
the rail
of
the theta_d
arm.
Secure
it
in place with the Allen wrench provided.
50
SmartLab SE: Automated Multipurpose X-ray Diffractomet
er
