Rigaku
Receiving optics uni
t#
I

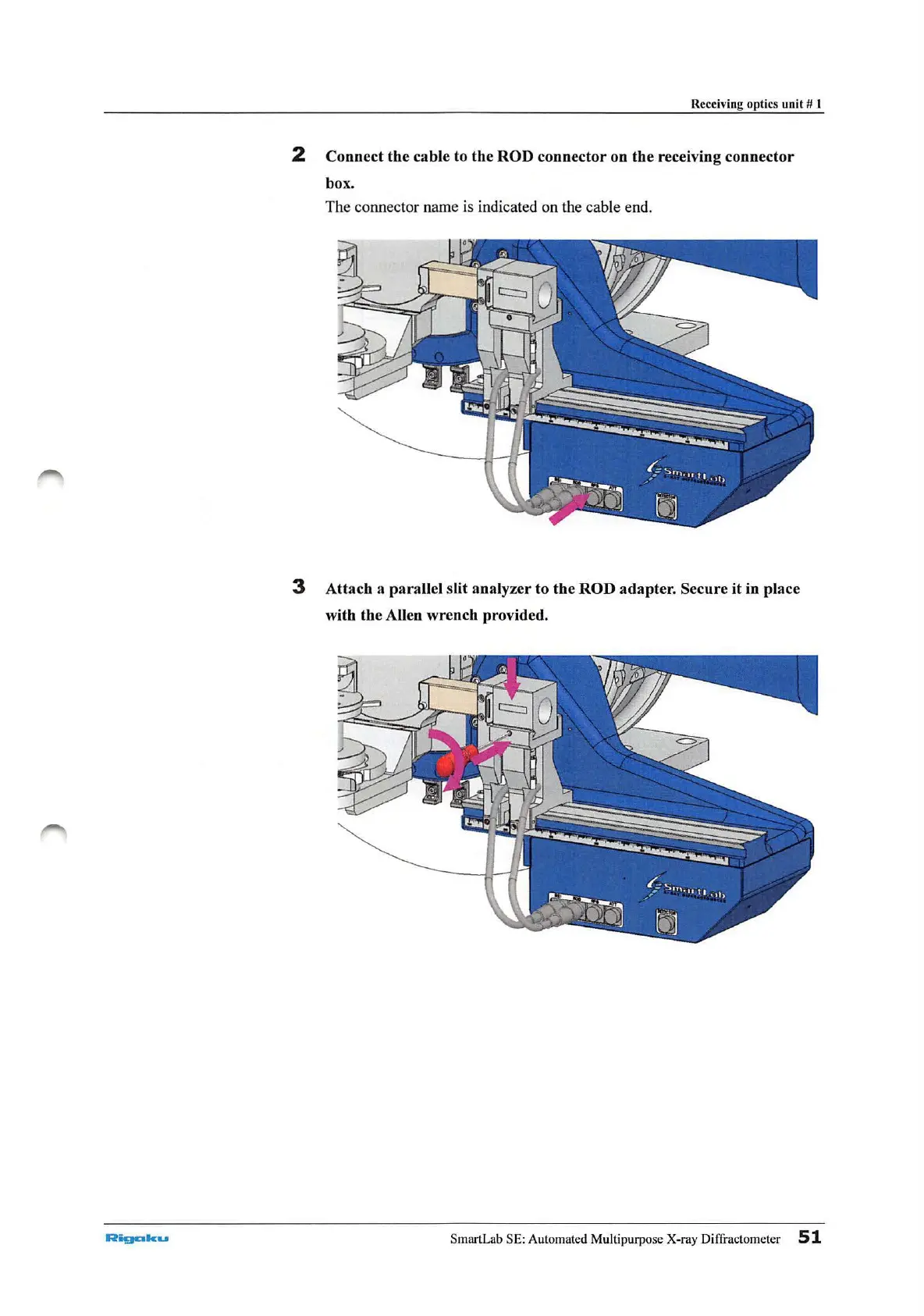

2 Connect the cable to the
ROD
connector on the receiving connector
box.
The connector name is indi
ca
ted on the cable end.
3 Attach a parallel slit analyzer to the
ROD
adapter.
Secur
e it in place
with the Allen wrench provided.
SmartLab SE: Automated Multipurpose X-ray Diffractometer
51
