Aigaku
Detec
tor
adapter
(detachable type)

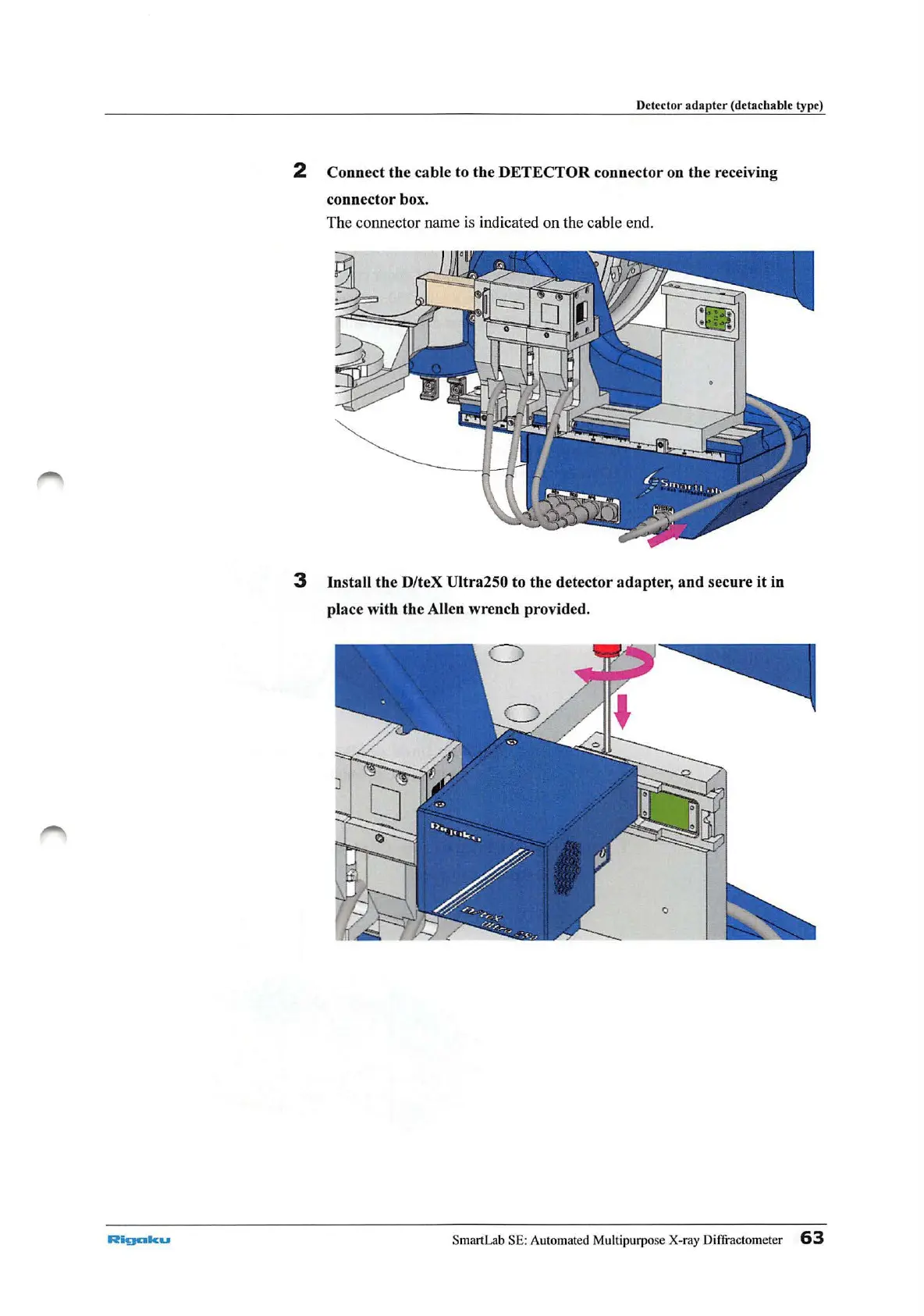

2 Connect the cable to the
DETECTOR
connector on the receiving
connector box.
The connector name is indicated on the cable end.
3 Install the D/teX Ultra250 to the detector adapter,
and
secure
it
in
place with the Allen wrench provided.
SmartLab SE: Automated Multipurpose X-ray Diffractometer
63
