Rigaku
Diffracted
beam
monochr
oma
tor
dedic
at
ed for D/teX

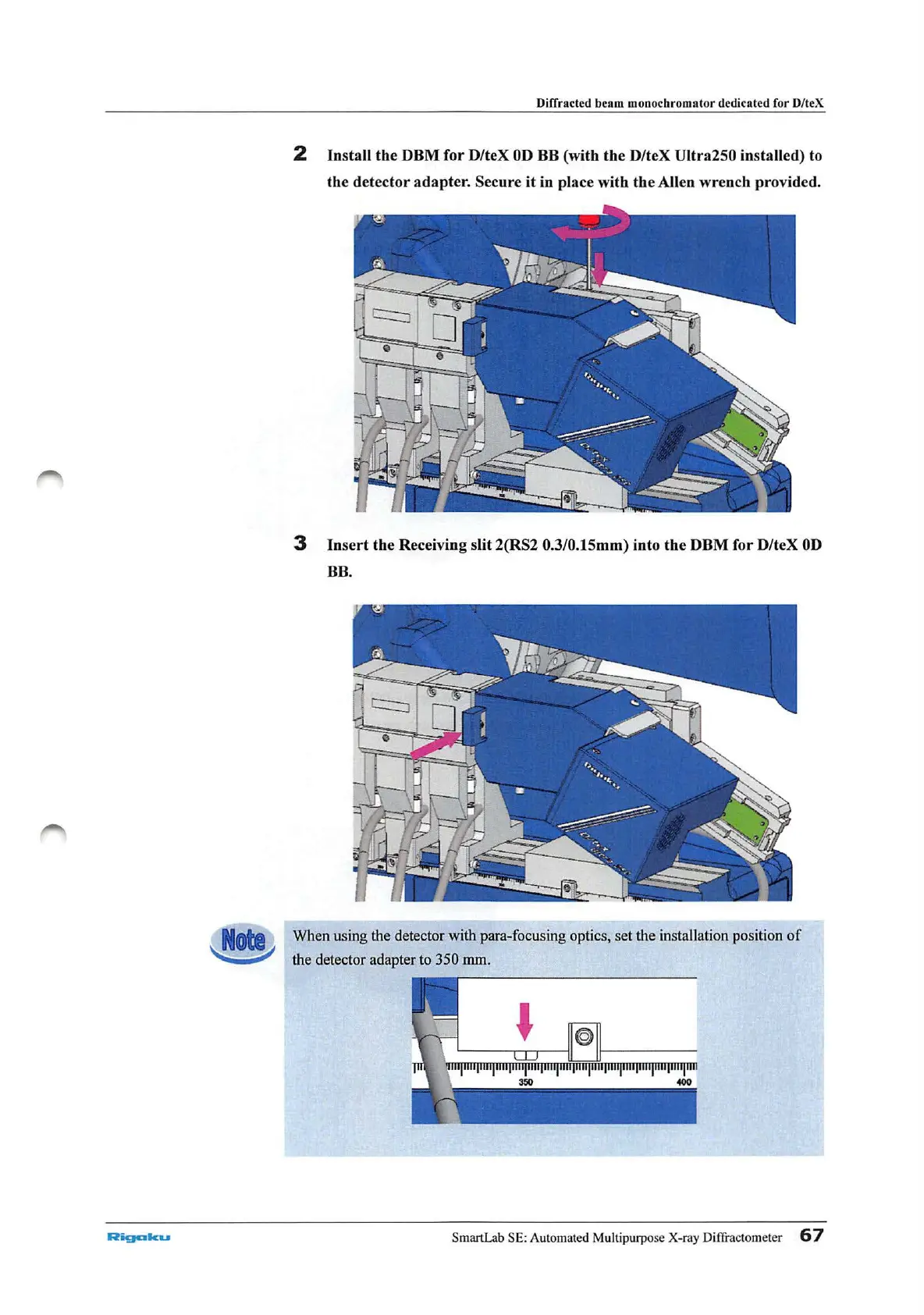

2 Install the DBM for D/teX
OD
BB (with the D/teX Ultra250 installed) to
the detector adapter. Secure it in place with the Allen
wr
ench provided.
3
Insert
the Receiving slit 2(RS2 0.3/0.lSmm) into
th
e DBM for D/teX
OD
BB.
When using the detector with para-focusing optics, set the
in
stallation position
of
the detector adapter to 350
mm
.
SmartLab S
E:
Automated Multipurpose X-ray Diffractomet
er
6 7
