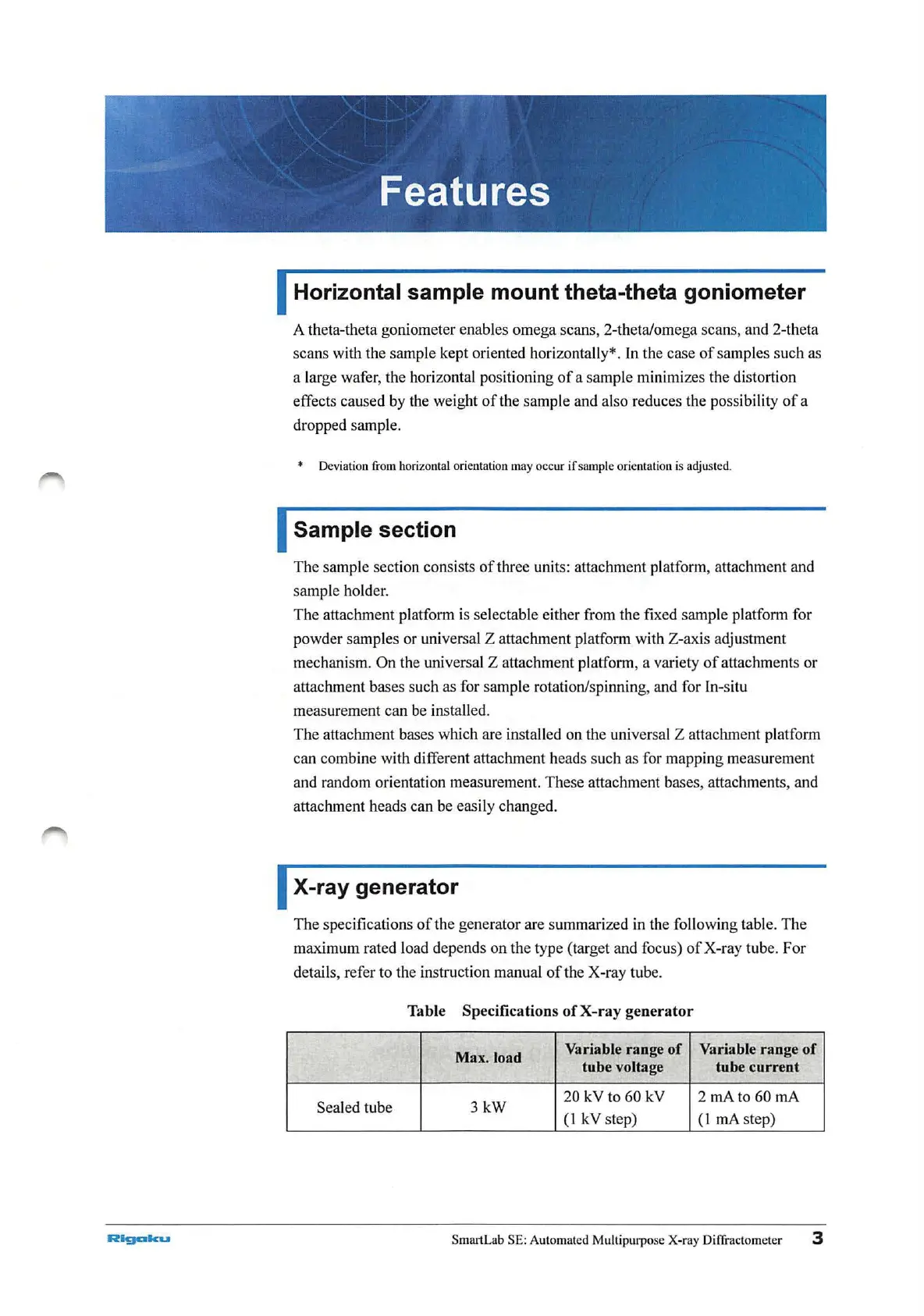

Horizontal sample mount theta-theta goniometer
A theta-theta goniometer enables omega scans, 2-theta/omega scans, and 2
-th
eta
scans with the sample kept
or
iented horizontall
y*
. In the case
of
sampl
es
such as
a large wafer, the horizontal positioning
of
a sample minimizes the distortion
effects caused by the wei
ght
of
the sample and also reduc
es
the possibility
of
a
dropped sample.
• Deviation
from
hor
izon
tal orientation
may
occur
if
sam
ple
orie
nt
ation
is
adjusted.
I Sample section
The sample section consists
of
three units: attachment platform, attachment and
sample holder.
The attachment platform
is
se
lectable either from the fixed sample platform for
powder samples or universal Z attachment platform with Z-axjs ad
ju
st
ment
mechanism. On the univer
sa
l Z attachment platform, a variety
of
attachments
or
attachment bases such as for sample rotation/spinning, and for In-situ
measurement can be installed.
The attachment bases whlch are in
sta
lled on the universal Z attachment platform
can combine with different attachment heads such as for mapping measurement
and random orientation measurement. These attachment bases, attachments, and
attachment heads can be easily changed.
I X-ray generator
The specifications
of
the generator are summarized in the fo
ll
owing table. The
roaxjmum rated load depends on the type (target and focus)
of
X-ray tube.
For
details, refer to the instruction manual
of
the X-ray tube.
Table Specifications
of
X-ray
ge
nerator
Max. load
Variable range
of
Variable range
of
tube voltage tube current
Sealed tube
3kW
20 kV to 60 kV
2
mAto60
mA
( I kV step) (1
mA
step)
