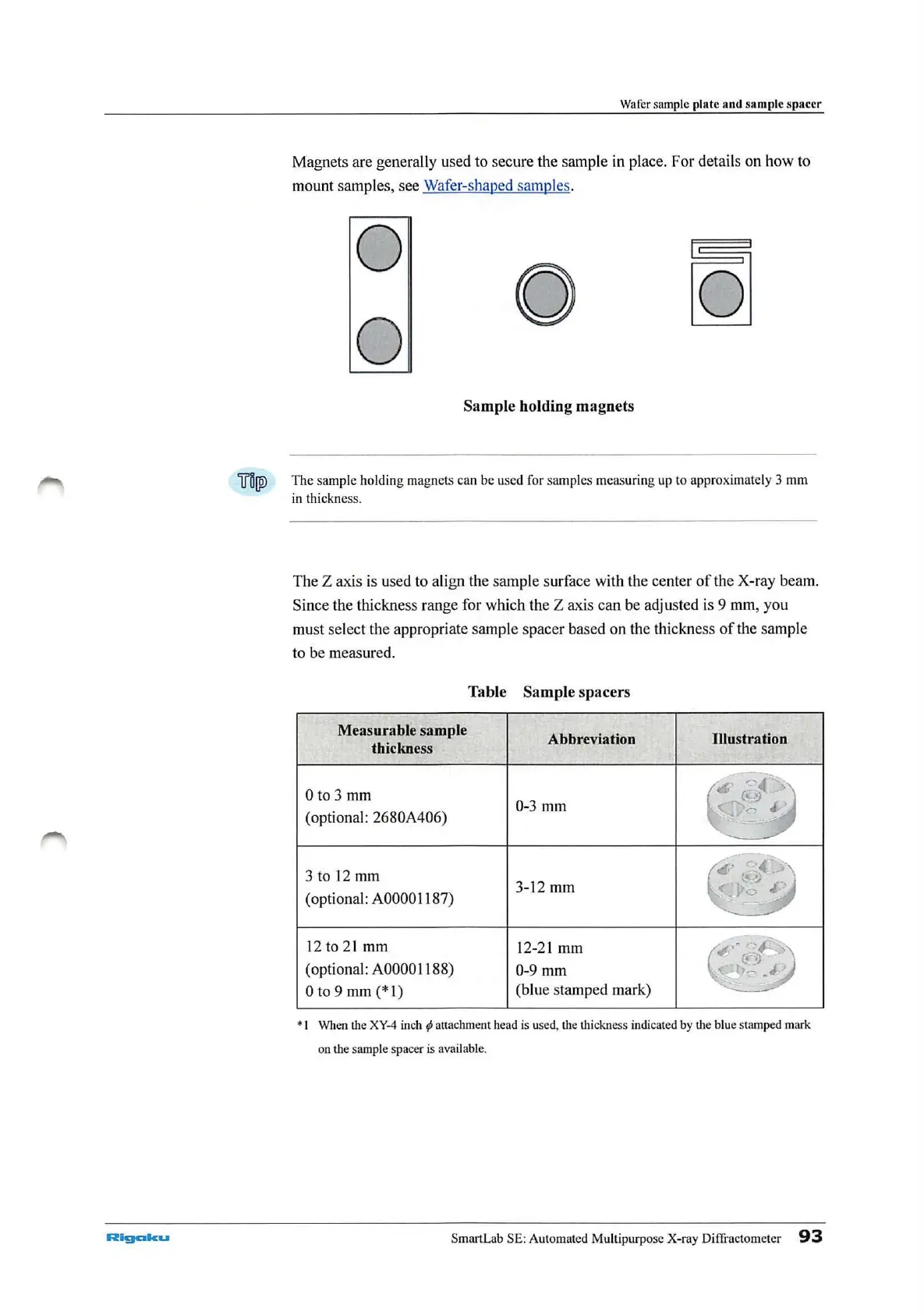

Wafer smnple plate and samp le spacer
Magnets are generally used to secure the sample in place. For details on how to
mount
samp les, see Wafer-shaped samples.
0
0
0
Sample holding magnets
lf'll[p) The sample holding magnets can be used for sampl es measuring up to approximately 3 mm
in thickness.
The Z axis is used to align the sample surface with the center of the X-ray beam.
Since the thickness range for which the
Z ax is can be adjusted is 9 mm, you
must select the appropriate sample spacer based on the thickness
of the samp le
to be measured.
Measurable sample
thickness
Oto 3 mm
(optional: 2680A406)
3 to 12 mm
(optional:
AOOOOJ 187)
1
2to21 mm
( optional:
AOOOO 1188)
Oto 9 mm(* I)
Table Sample spacers
Abbreviation
0-3 mm
3-12
mm
12-21 mm
0-9mm
(blue stamped mark)
Illustration
* I When the XY-4 inch ¢ attachment head is used, th e thickness ind.icated by tl1e blue starnped mark
on the sample spacer is available.
SmartLab
SE: Automated Multipurpo se X-ray Diffractom ete r 93
