RIGOL Chapter 1 Quick Start
1-4 DL3000 User’s Guide

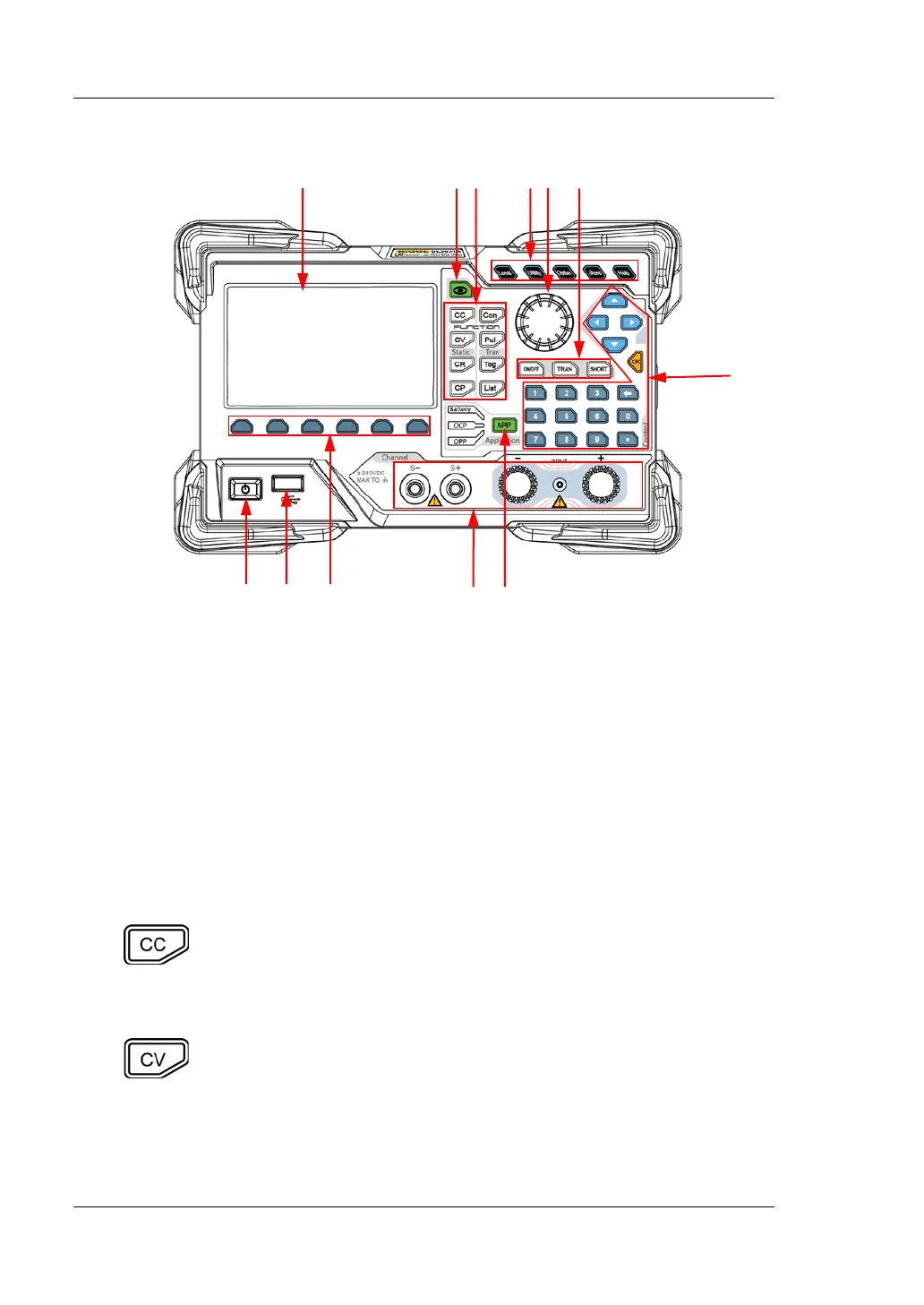

Front Panel
Figure 1-3 Front Panel
1. LCD
4.3-inch TFT LCD, used to display the system status, input parameters, menu
setting, prompt message, etc.
2. Waveform Display Key
Pressing this key can enter the waveform display interface. You can observe the
changes of parameters from the dynamic waveform.
3. Function Keys
Provide four static operating modes and three dynamic test functions. In
addition, there is also a key used for list operation.
(1) CC key
Pressing this key can enter the constant current (CC) mode. You
can set parameters for the mode, such as current, range, slew
rate, and starting voltage.
(2) CV key
Pressing this key can enter the constant voltage (CV) mode. You
can set parameters for the mode, such as voltage and range.
12
11 10 9 8
