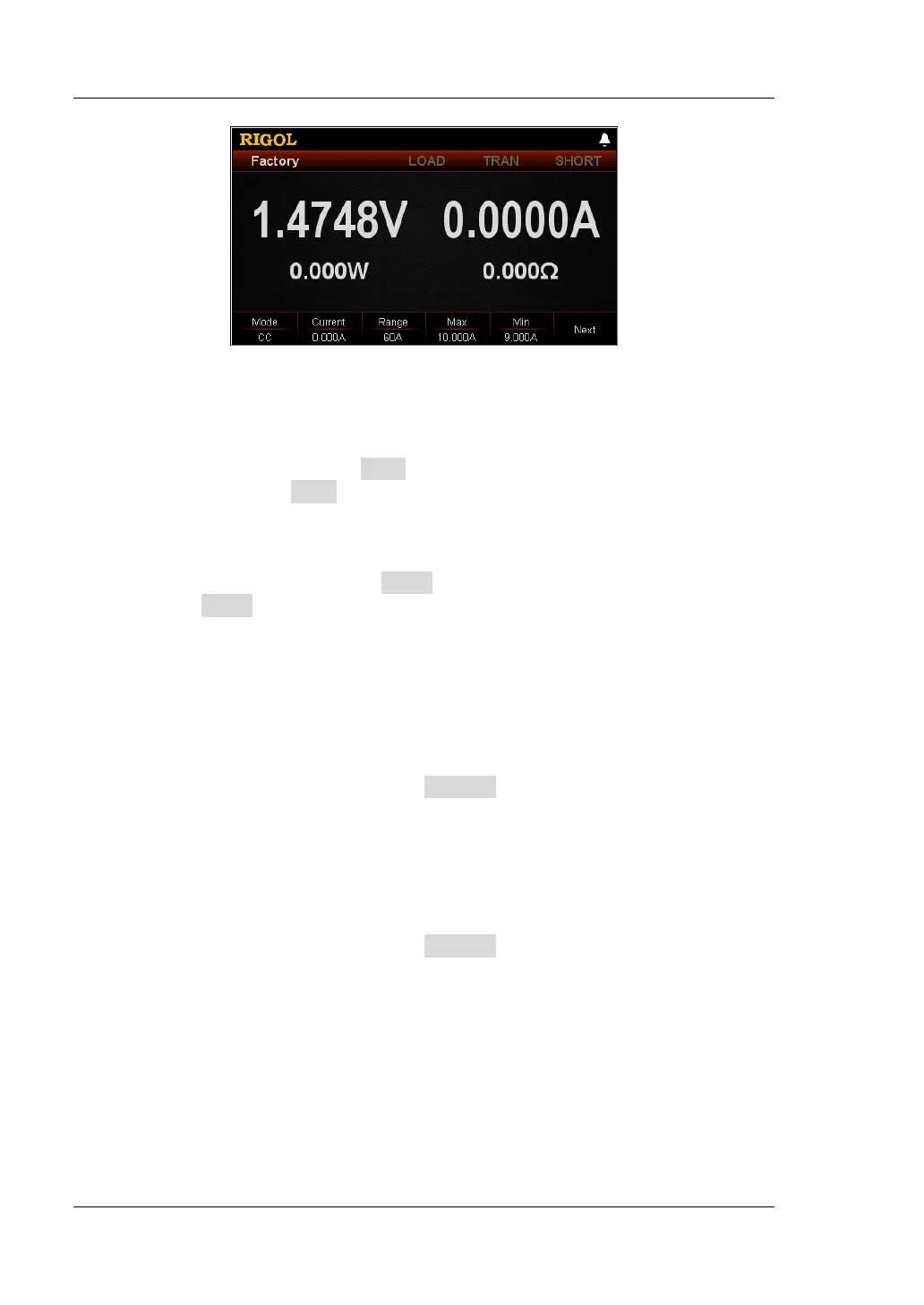

Figure 2-40 Main Interface of Factory Test Function
The menus of the main interface are displayed in two pages.
Menu items on Page 1: Mode, Current, Range, Max, Min, and Next.
Menu items on Page 2: Pass_Tip, Fail_Tip, Pass_Sound, Fail_Sound, and Back.
To go to the next page, press Next; to exit the current page and go back to the
previous page, press Back.
Set Mode
Factory test function supports CC/CV mode.
(1) In the main interface, press Mode to switch the parameter focus to "Mode".
(2) Press Mode to switch the factory test mode. You can also use the
Left/Right arrow key or the knob to switch it.
Set Current/Voltage
Sets the working voltage or current in the current mode based on the currently
selected working mode for the factory test function. The default unit for the
current is A, and that for the voltage is V.
 If you select "CC" mode:
(1) In the main interface, press Current to switch the parameter focus to
"Current".
(2) Enter a value by using the numeric keys, arrow keys, or the knob. For
setting methods, refer to the descriptions of the help information or
refer to the descriptions in "Parameter Setting Method".
 If you select "CV" mode:
(1) In the main interface, press Voltage to switch the parameter focus to
"Voltage".
(2) Enter a value by using the numeric keys, arrow keys, or the knob. For
setting methods, refer to the descriptions of the help information or
refer to the descriptions in "Parameter Setting Method".
Set Range
Sets the range in the current mode based on the currently selected working
mode of the factory test function.
 If you select "CC" mode:
