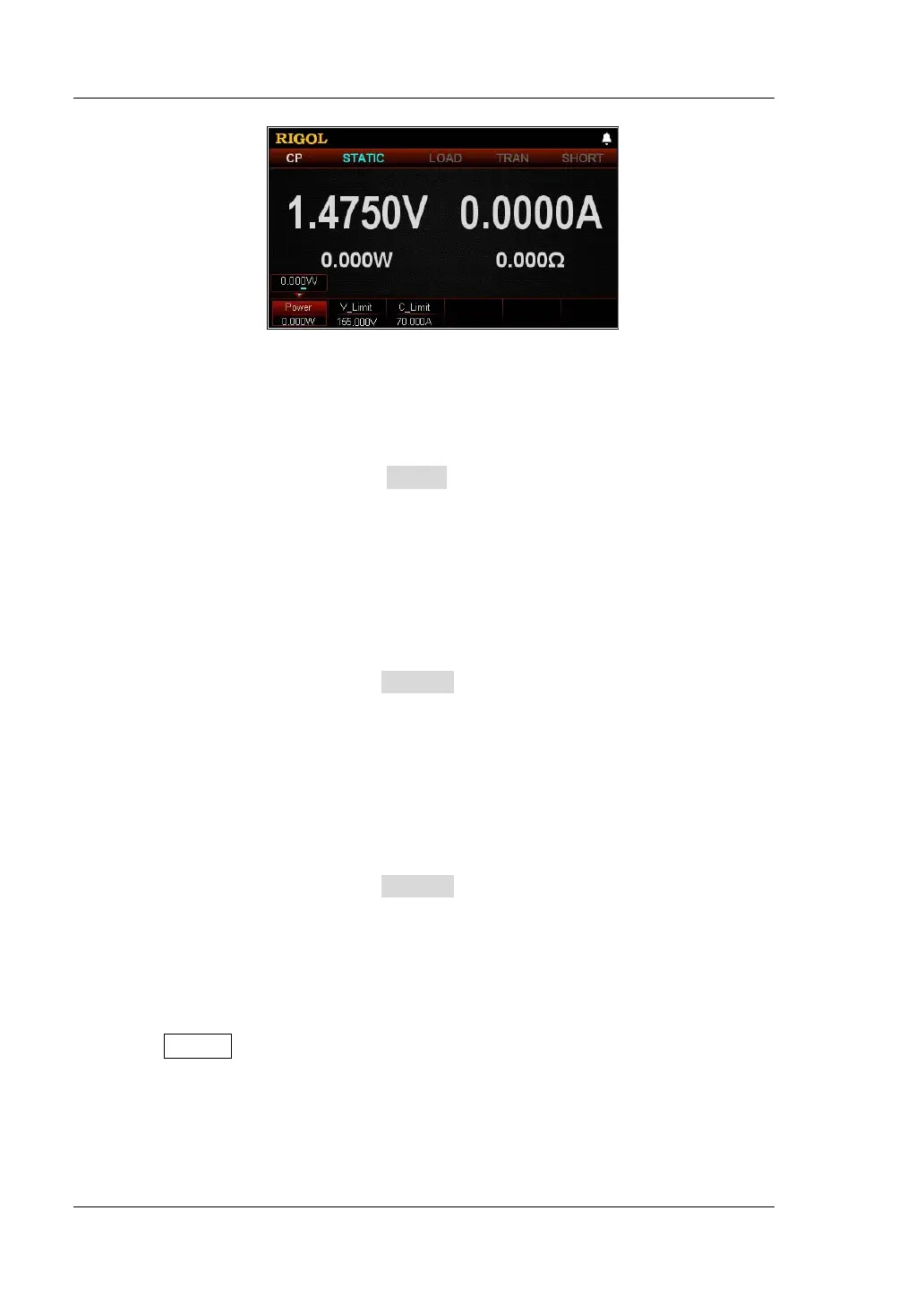

Figure 2-12 Main Interface of CP Mode
In CP mode, you need to set the following parameters: Power, V_Limit, C_Limit.
Set Power
The constant power value in CP mode. The default unit for power is W.
(1) In the main interface, press Power to switch the parameter focus to
"Power".
(2) Enter a value by using the numeric keys, arrow keys, or the knob. For the
setting methods, refer to the descriptions of the built-in help information or
refer to the descriptions in "Parameter Setting Method".
Set V_Limit
The upper limit of the voltage working in CP mode. The default unit for V_Limit
is V, and it ranges from 0 V to 155 V.
(1) In the main interface, press V_Limit to switch the parameter focus to
"V_Limit".
(2) Enter a value by using the numeric keys, arrow keys, or the knob. For the
setting methods, refer to the descriptions of the built-in help information or
refer to the descriptions in "Parameter Setting Method".
Set C_Limit
The upper limit of the current working in CP mode. The default unit for C_Limit
is A, and it ranges from 0 A to 70 A.
(1) In the main interface, press C_Limit to switch the parameter focus to
"C_Limit".
(2) Enter a value by using the numeric keys, arrow keys, or the knob. For the
setting methods, refer to the descriptions of the built-in help information or
refer to the descriptions in "Parameter Setting Method".
4. Turn on the channel input
Press On/Off to turn on the channel input. At this time, the actual input
voltage, current, resistance, and power will be displayed in the main interface.
