short-circuiter. Press Zero to perform the zero point calibration. The zero point
calibration parameters will be displayed in the Cal 0 table after the zero point
calibration finishes.

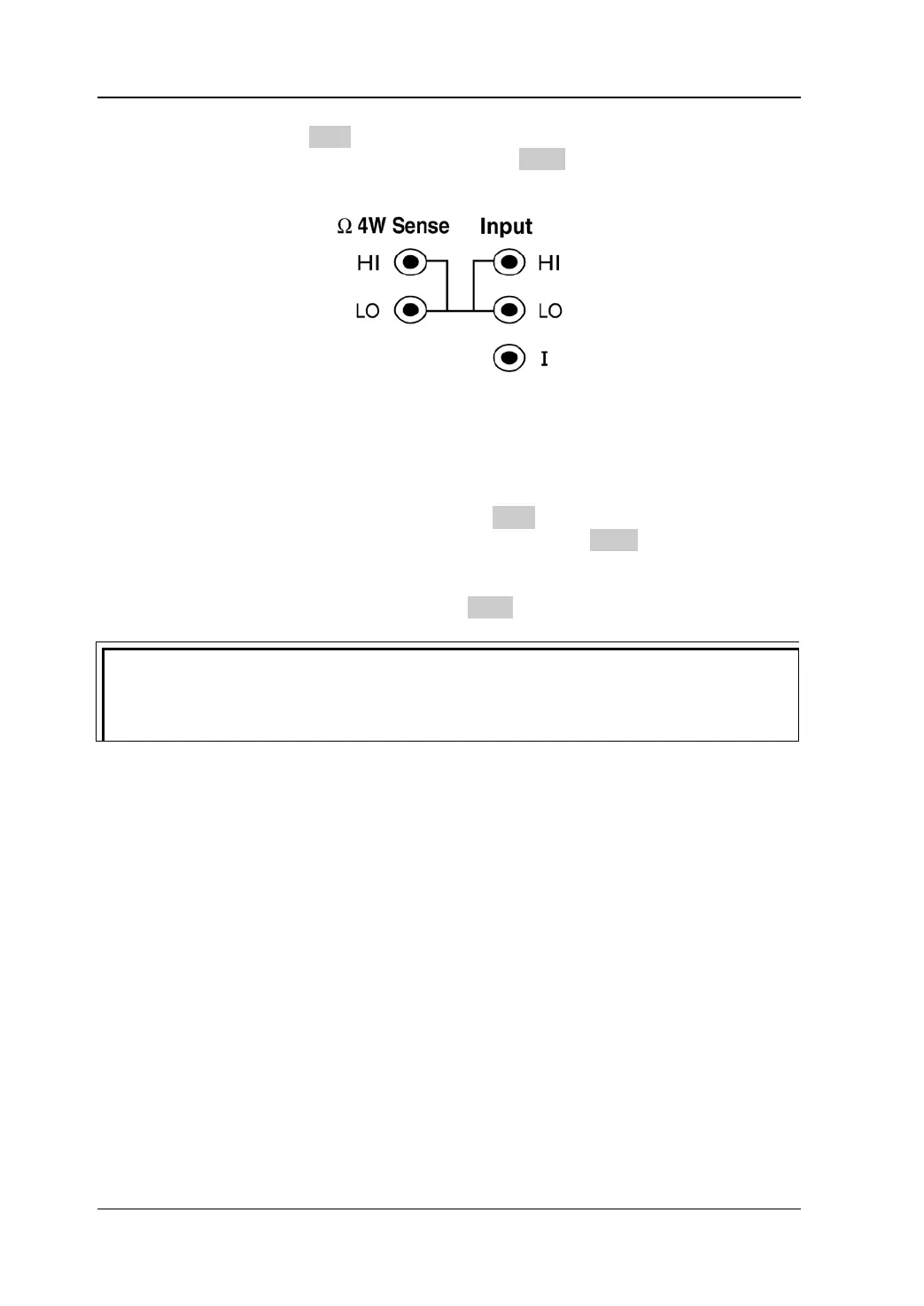

Figure 2-1 Short-circuit of the Input HI-LO and Sense HI-LO Terminals
5. After the zero point calibration finishes, connect the Input HI-LO terminal and
Sense HI-LO terminal with the corresponding output terminals of the calibrator.
Set the output of the calibrator to 4-wire resistance 20 kΩ (namely the gain
calibration input). Turn on the output of the calibrator and wait until the output of
the calibrator becomes stable. Then, press Gain to perform the gain calibration.
The gain calibration parameters will be displayed in the Cal G table after the gain
calibration finishes.
6. After the above calibrations finish, press Save to save the calibration parameters.
Note
Special care should be paid during the calibration process to avoid affecting the
performance of the instrument. Please read the "Test Conditions
" before
performing the calibration.
