User’s Guide for DS1000E, DS1000D Series

2-88

Play back: Play back the recorded waveforms.

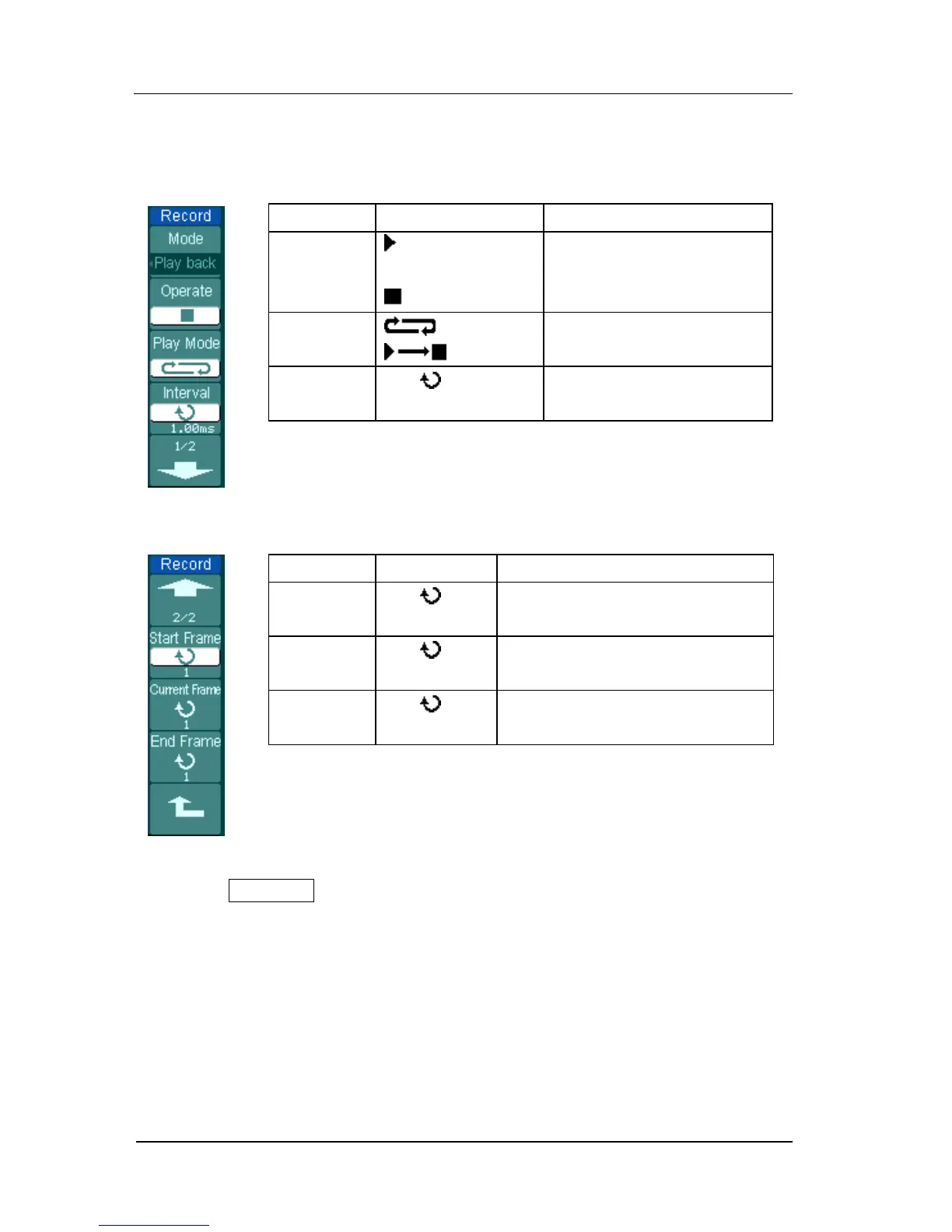

Figure 2- 103 Table 2- 67 The Record menu (Page 1/2)

Settings

Comments

Operate

(Run)

(Stop)

Play stopped, press to

Start playback

Playing, press to stop

Play mode

Set repeat play mode

Set single time play mode

Interval

<1.00ms-20s>

Set up interval

Figure 2- 104 Table 2- 68 The Record menu (Page 2/2)

Settings

Comments

Start

Frame

<1-1000>

Set start frame

Current

Frame

<1-1000>

Select current frame to be played

End Frame

<1-1000>

Set End frame

NOTE: the RUN/STOP button can also replay or continue the waveform display.
