1. Voltage Measurements

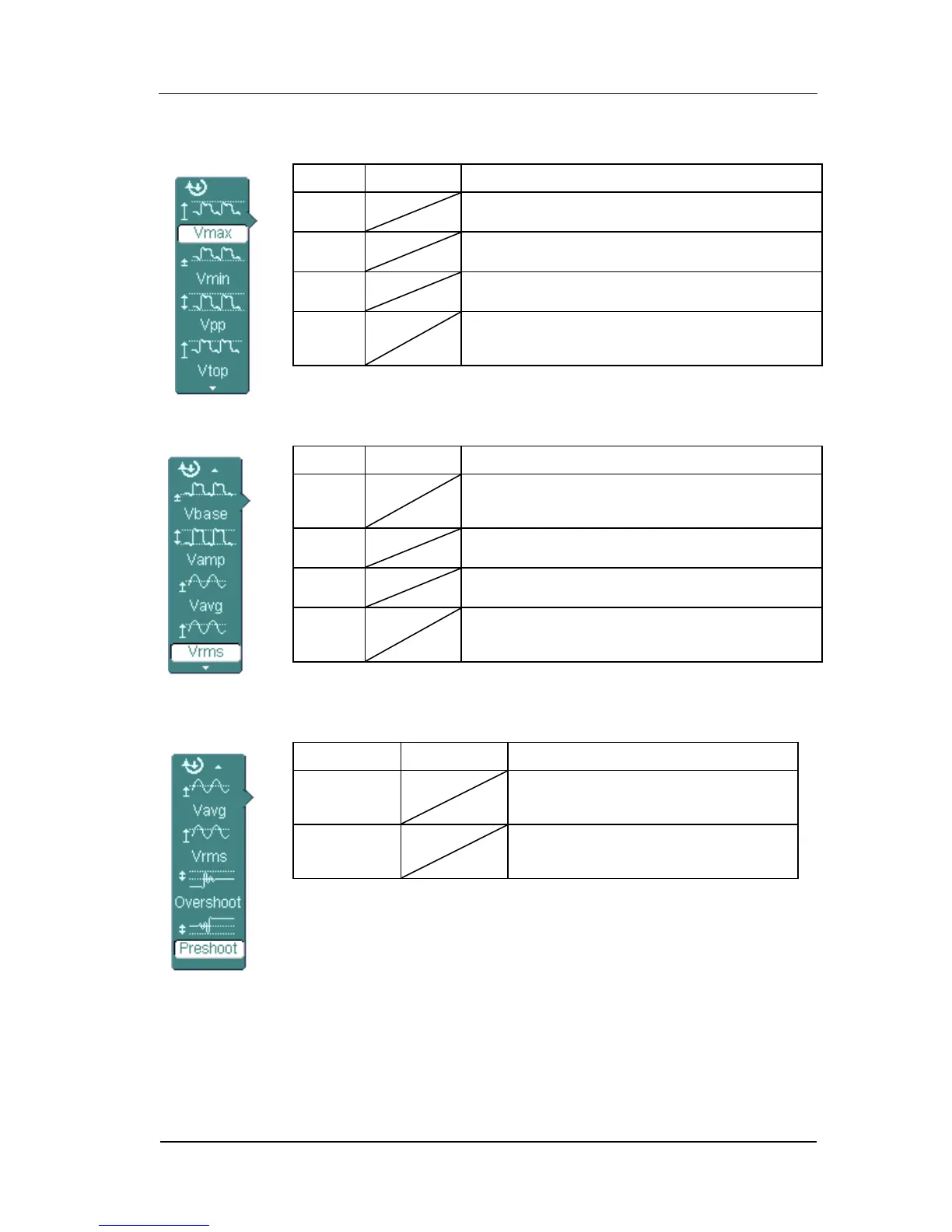

Figure 2- 111 Table 2- 73 The Voltage Measurements menu (Page 1/3)
Measure maximum voltage of a waveform
Measure minimum voltage of a waveform
Measure Peak-to-Peak Voltage
Measure a flat top voltage of a square
waveform
Figure 2- 112 Table 2- 74 The Voltage Measurements menu (Page 2/3)
Measure a flat base voltage of a square
waveform
Measure voltage between Vtop and Vbase
Measure average voltage of a waveform
Measure Root Mean Square Voltage of a
waveform
Figure 2- 113 Table 2- 75 The Voltage Measurements menu (Page 3/3)
Measure overshoot in percentage
of an edge
Measure preshoot in percentage of
an edge
To Next Page
