Manual Mode

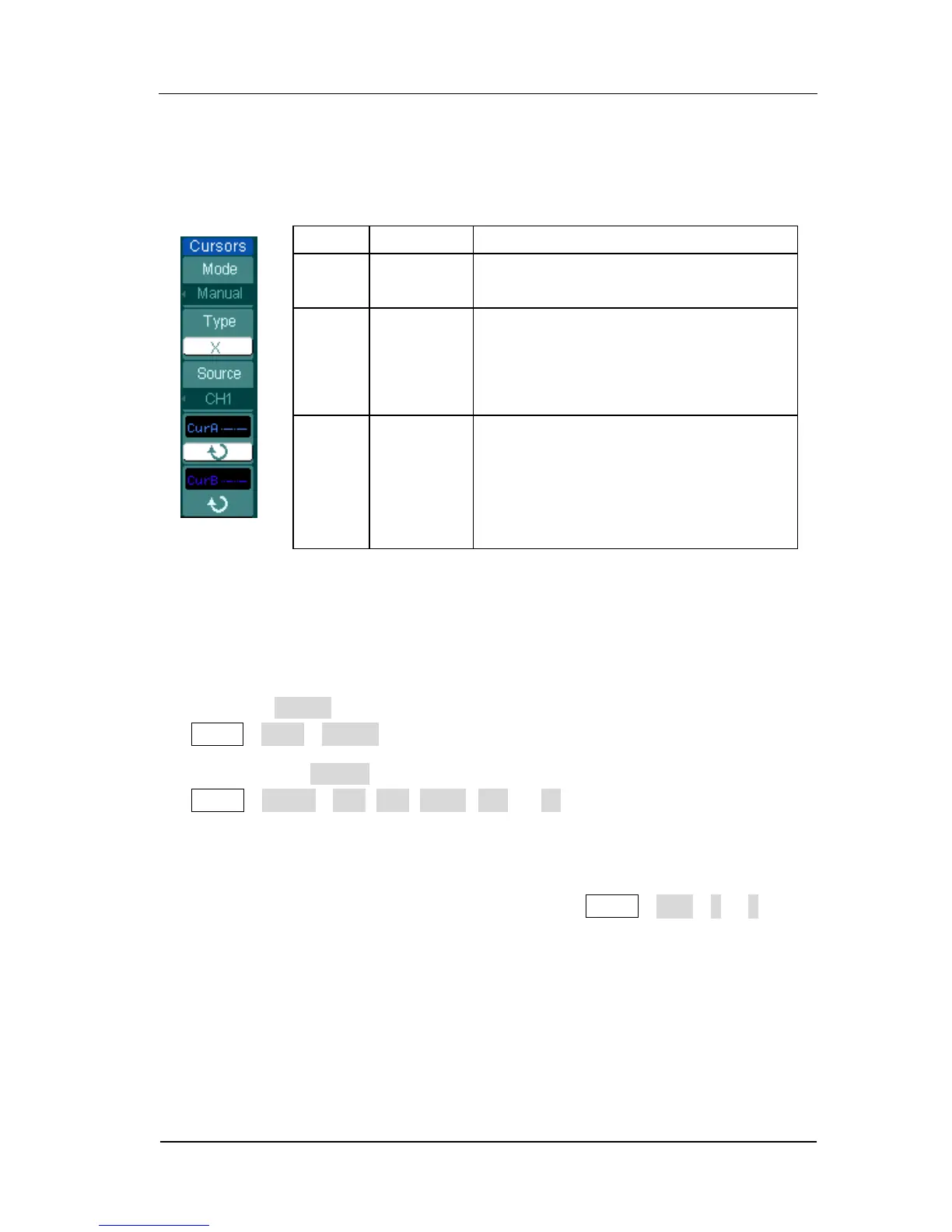

Figure 2- 121 Table 2- 79 The Manual Mode menu
Menu
Settings
Comments
Mode
Manual
Adjust the cursor to measure X/Y
parameters manually
Type
X
Y
Shown as vertical line to measure the
horizontal parameters
Shown as horizontal line to measure
the vertical parameters
Source
CH1
CH2
MATH/
FFT
LA
Select the measurement signal source.
(LA is only for DS1000D series)
In this mode, the oscilloscope measures the Y or X coordinate values of the cursors,
and the increments between the two cursors.
To do manual Cursor Measurements, please do as the following steps:
1. Select the Manual mode for cursor measurement by pressing soft button as:
Cursor→Mode→Manual.
2. Select channel Source for measurements by pressing soft button as:
Cursor→Source→CH1, CH2, MATH (FFT) or LA (DS1000D series)
NOTE: While measuring the channel of MATH, the results are valued with “d”
(division) as units.
3. Select the cursors type by pressing soft button as Cursor→Type→X or Y.
4. Move the cursors to adjust the increment between the cursors: (Details in the
following Table)
