User’s Guide for DS1000E, DS1000D Series
2-102
Track Mode

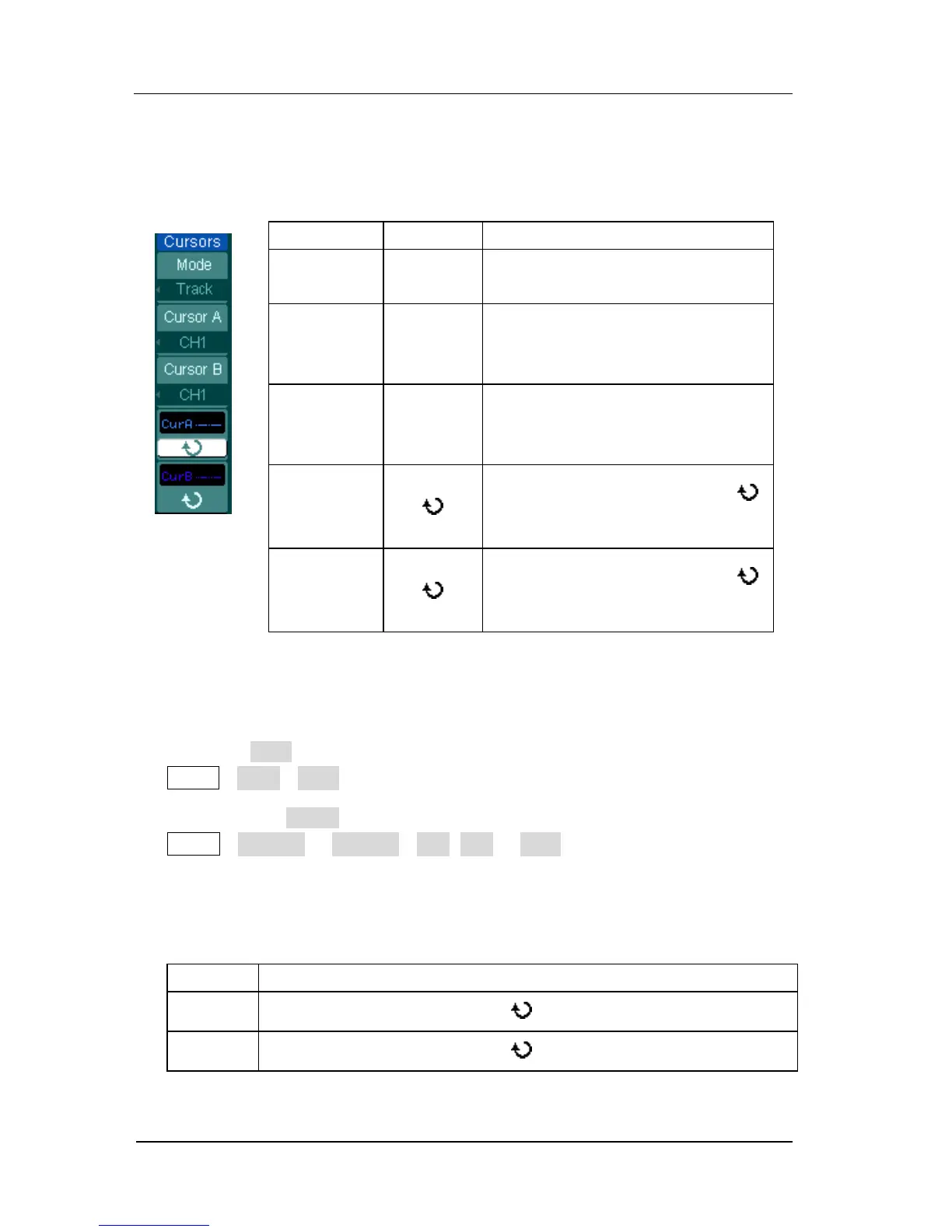

Figure 2- 122 Table 2- 81 The Track Mode menu
Menu
Settings
Comments
Mode
Track
Set Track mode in cursor
measurement
Cursor A
CH1
CH2
None
Set Cursor A in conjunction with
CH1, CH2 or turn off Cursor A
Cursor B
CH1
CH2
None
Set Cursor B in conjunction with
CH1, CH2 or turn off Cursor B
CurA
(Cursor A)
Turn the multifunctional knob ( )
to move cursor A horizontally
CurB
(Cursor B)
Turn the multifunctional knob ( )
to move cursor B horizontally
In cursor track mode, the cursors move together with the selected waveform.
To do Track mode Cursor Measurements, follow these steps:
1. Select the Track mode for cursor measurement by pressing soft button as:
Cursor→Mode→Track.
2. Select channel Source for Cursor A and Cursor B by pressing soft button as:
Cursor→Cursor A or Cursor B→CH1, CH2 or None.
3. Move the cursors to adjust the horizontal positions of the cursors: (Details in the
following Table)
Table 2- 82 The Cursor usage
Cursor
Operation
Cursor A
Turn the multifunctional knob ( ) to move cursor A horizontally
Cursor B
Turn the multifunctional knob ( ) to move Cursor B horizontally
