3. Connect a test clip to one lead wire; make sure it’s connection good.

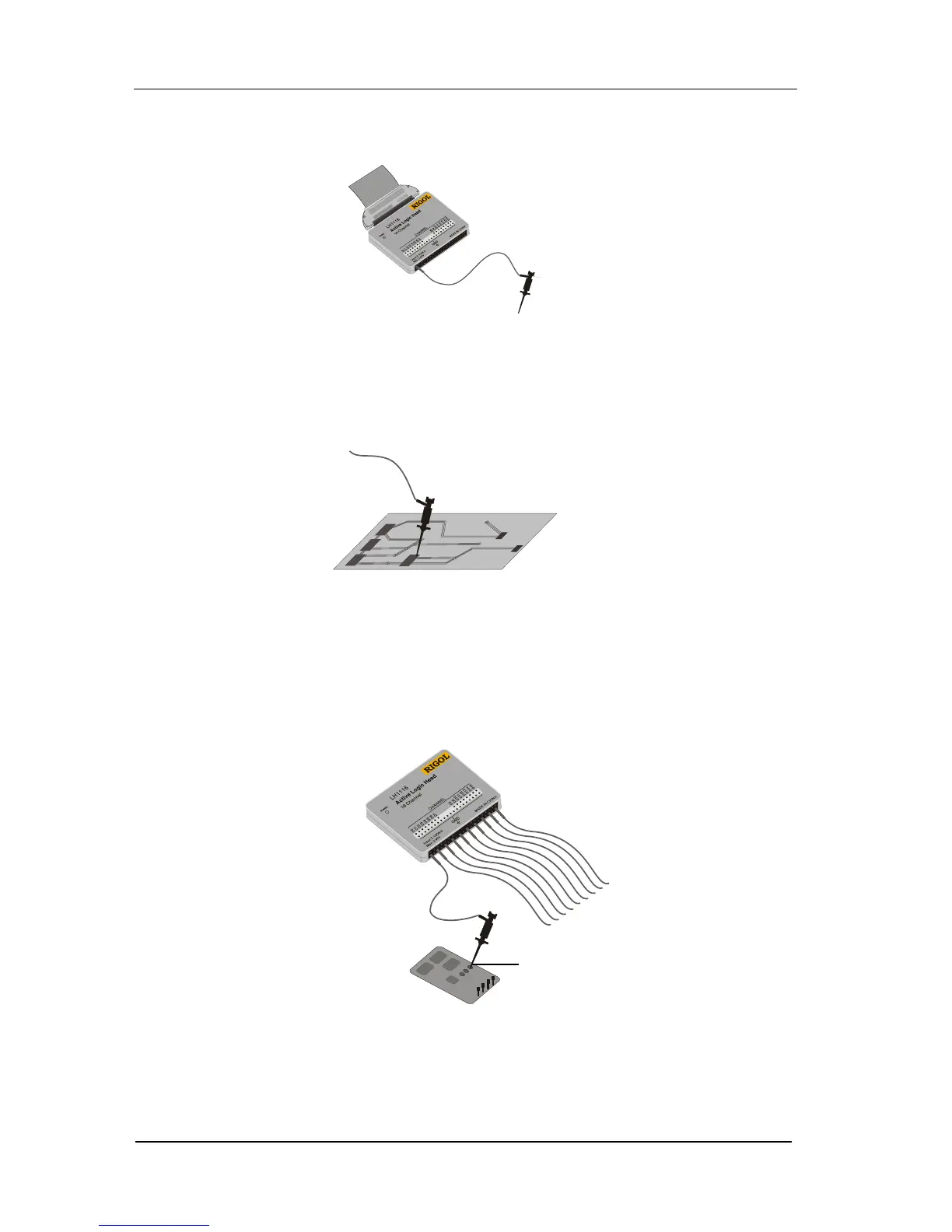

Figure 1- 11
4. Test your device with the clip.
Figure 1- 12
5. Remember to connect Ground Channel to the DUT’s ground terminal.
Figure 1- 13
Test clip
GND
