User’s Guide for DS1000E, DS1000D Series
To Trigger the Oscilloscope

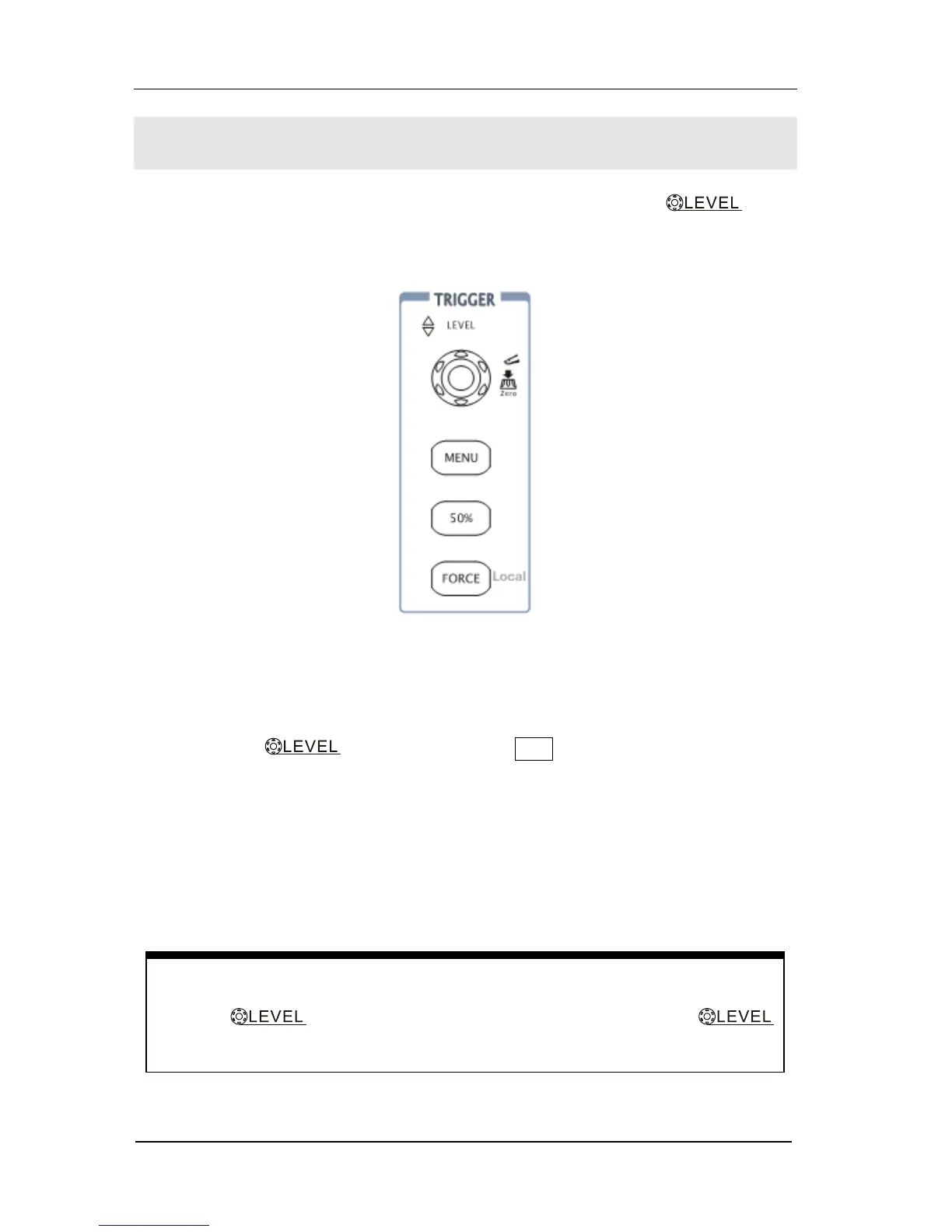

Figure 1- 16 shows the trigger control: MENU, 50%, FORCE and a trigger
level knob. Following the exercise to familiarize with the buttons, trigger level knob
and status bar.
Figure 1- 16
The trigger control window
1. Turn the trigger Level knob and notice the changes on the display.
As you turn the knob or pressing the 50% button, two things will happen
on the display for a short time.
First, the trigger level value is displayed at the bottom-left of the screen. If the
trigger is DC coupled, it is displayed as a voltage value. If the trigger is AC
coupled or LF reject, it is displayed as a percentage of the trigger range.
Second, a line is displayed showing the location of the trigger level (as long as
AC coupling or low frequency reject are not selected).
双 Trigger Level to 0 Shortcut key
Turn the knob to change trigger level value and press the
knob to set trigger level back to 0 as a shortcut key.
