User’s Guide for DS1000E, DS1000D Series
2-24
The figure of menu shows as follow.

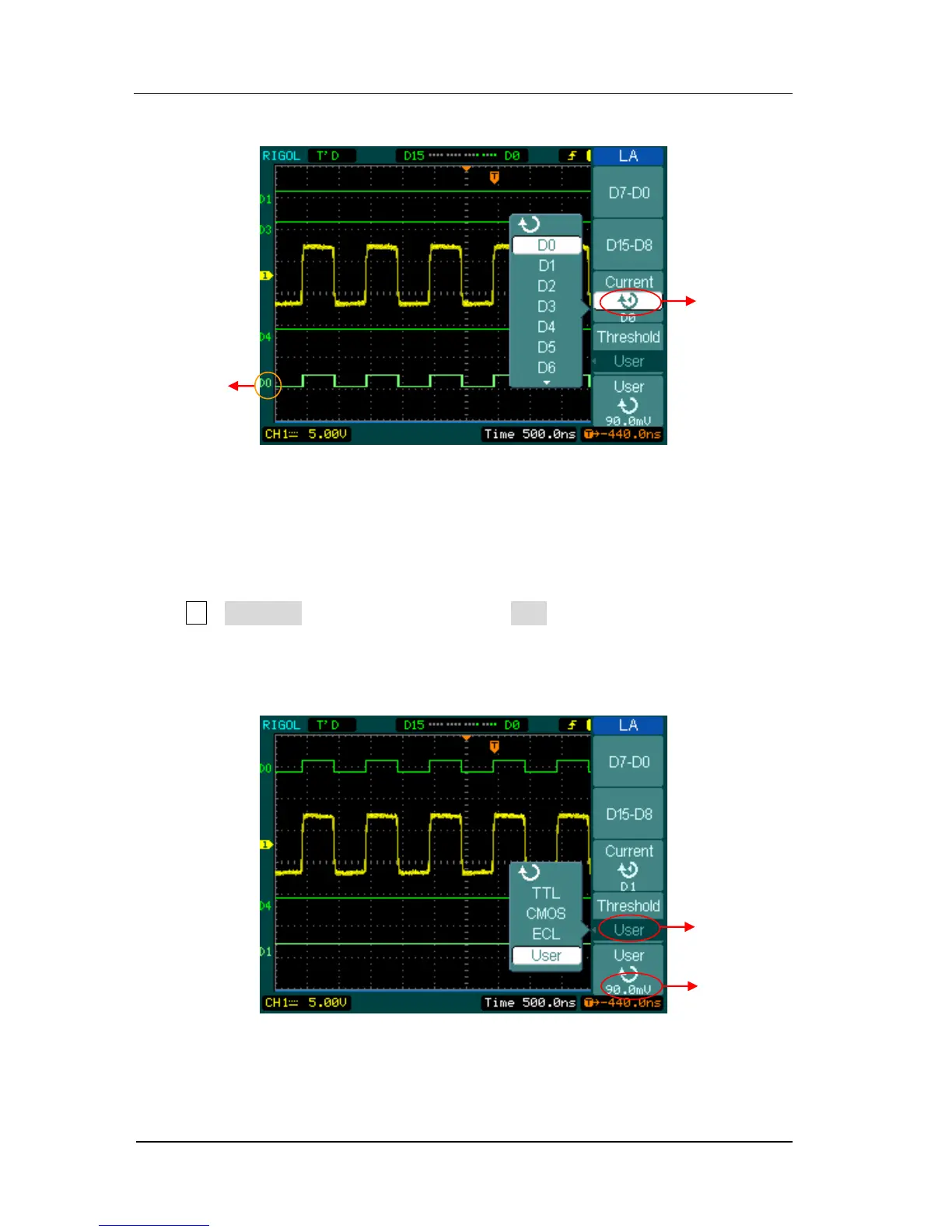

Figure 2- 32
Turn on the digital channel
2. Set threshold mode of digital channels
Press LA→Threshold, select logic standard or User to define your own threshold
voltage.
The figure of menu shows as follow.
Figure 2- 33
Set the threshold
Select
running
channel
Running
channel
Setup threshold
Setup data of
threshold by user
