User’s Guide for DS1000E, DS1000D Series

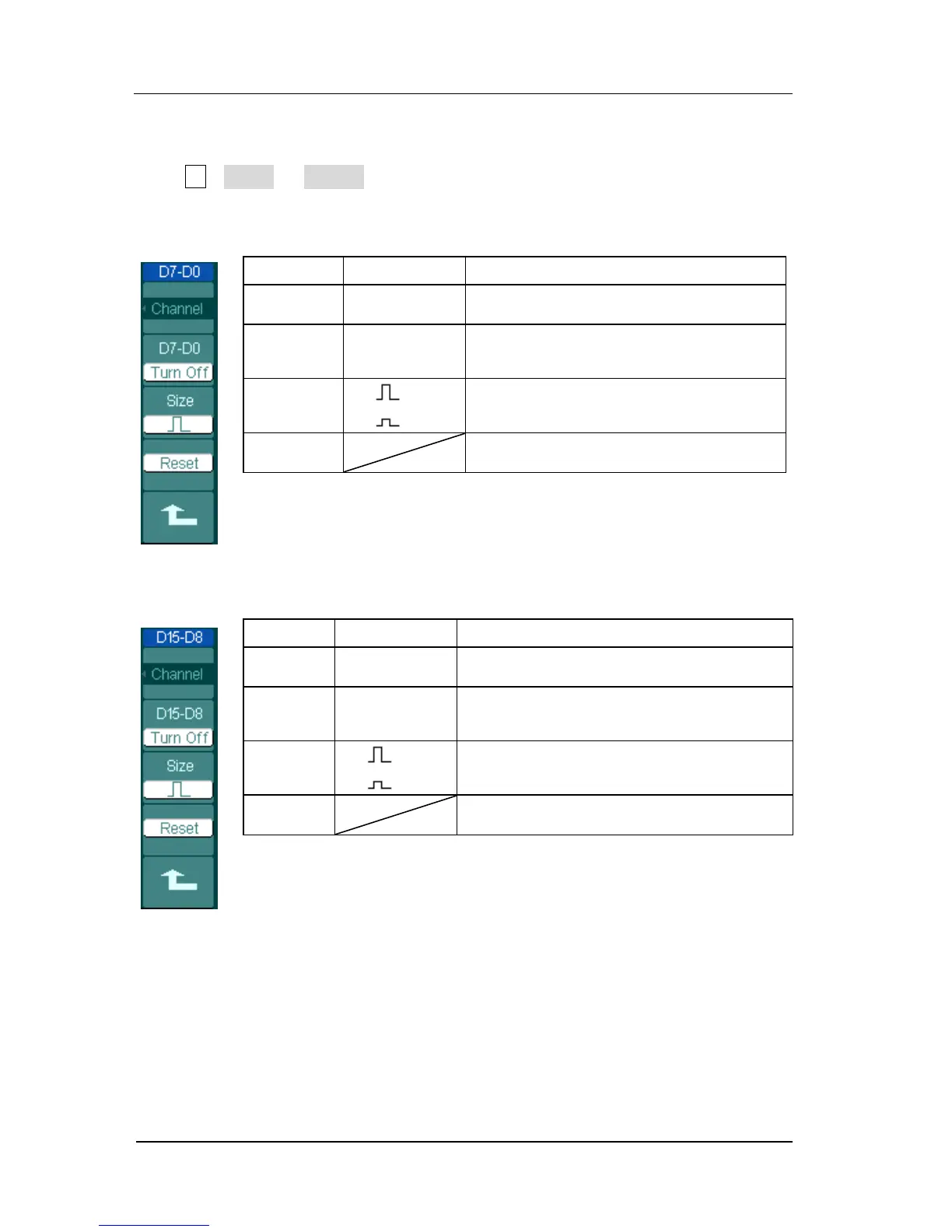

Set up Channel Group
Press LA→D7-D0 or D15-D8; turn on/off the channel single, or in a group. Also
you can change the size of waveforms in 8 bits as a group. See table 2-16 and 2-17
Figure 2- 34 Table 2- 16 The Digital Channel menu (Page 1)
Turn on or off single channel of D7-D0
Turn on or off all 8 channels together
Display 8 channels in a single screen
Display 16 channels in a single screen
Reset waveform of channel D7-D0
Figure 2- 35 Table 2- 17 The Digital Channel menu (Page 2)
Turn on or off single channel of D15-D8
Turn on or off 8 channels together
Display 8 channels in a single screen
Display 16 channels in a single screen
Reset waveform of channel D15-D8
To Next Page
