X-Y Format
This format is useful for studying phase relationships between two signals.
Channel 1 in the horizontal axis(X) and channel 2 in the vertical axis(Y), the
oscilloscope uses a none-trigger acquisition mode, data is displayed as dots.

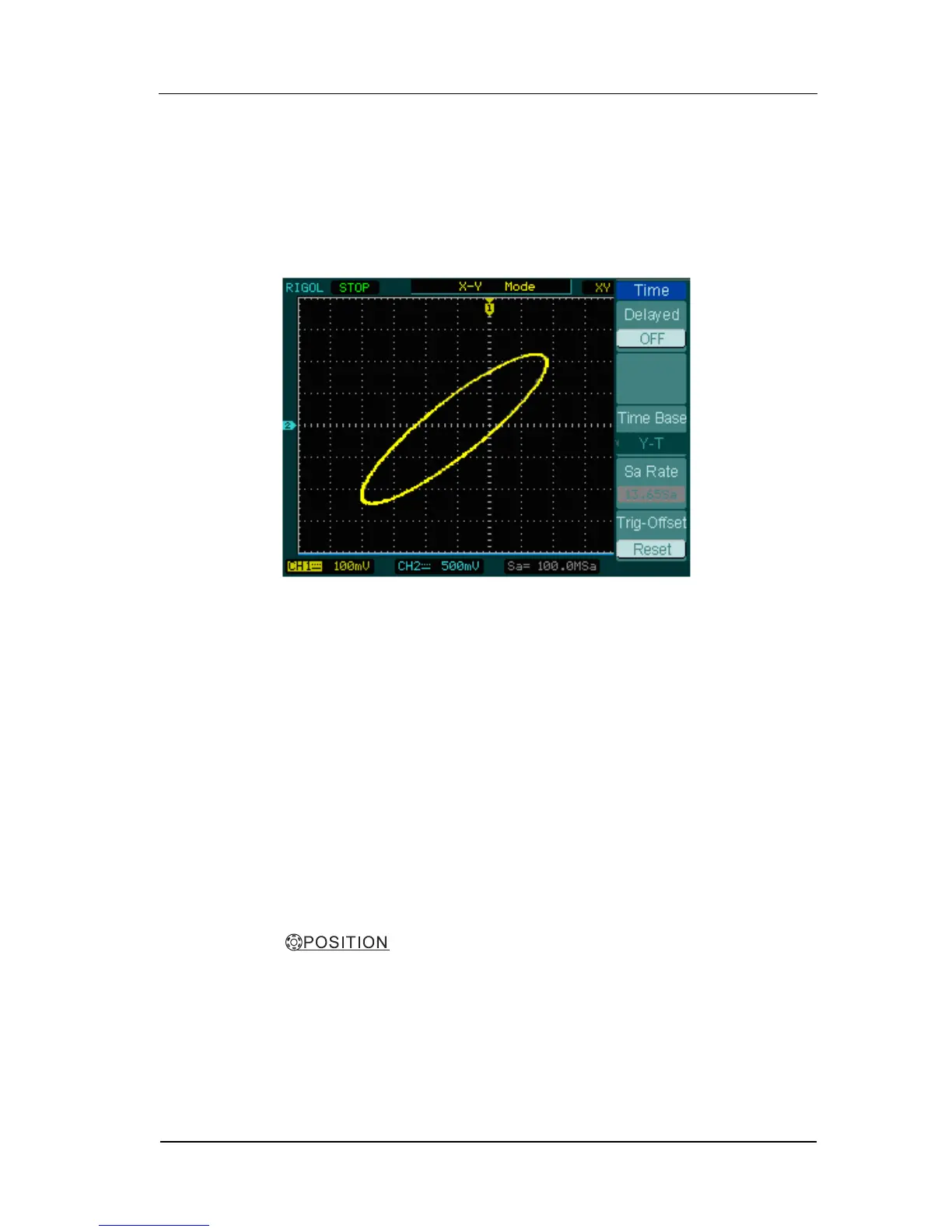

Figure 2- 40
X-Y display format
NOTE：In Y-T format, all sample rates are available. But in X-Y format, 100 MSa/s
is not available. In common, deceasing the sample rate can display the wavefrom
better.
The following modes or functions will not work in X-Y format.
 LA Function (DS1000D series)
 Automatic Measurements
 Cursor Measurements
 REF and MATH Operations
 Delayed Scan Mode
 Vector Display Mode
 Horizontal knob
 Trigger Controls
