Settings for Pulse Width Trigger
Pulse trigger occurs according to the width of pulse. The abnormal signals can be
detected through setting up the pulse width condition.

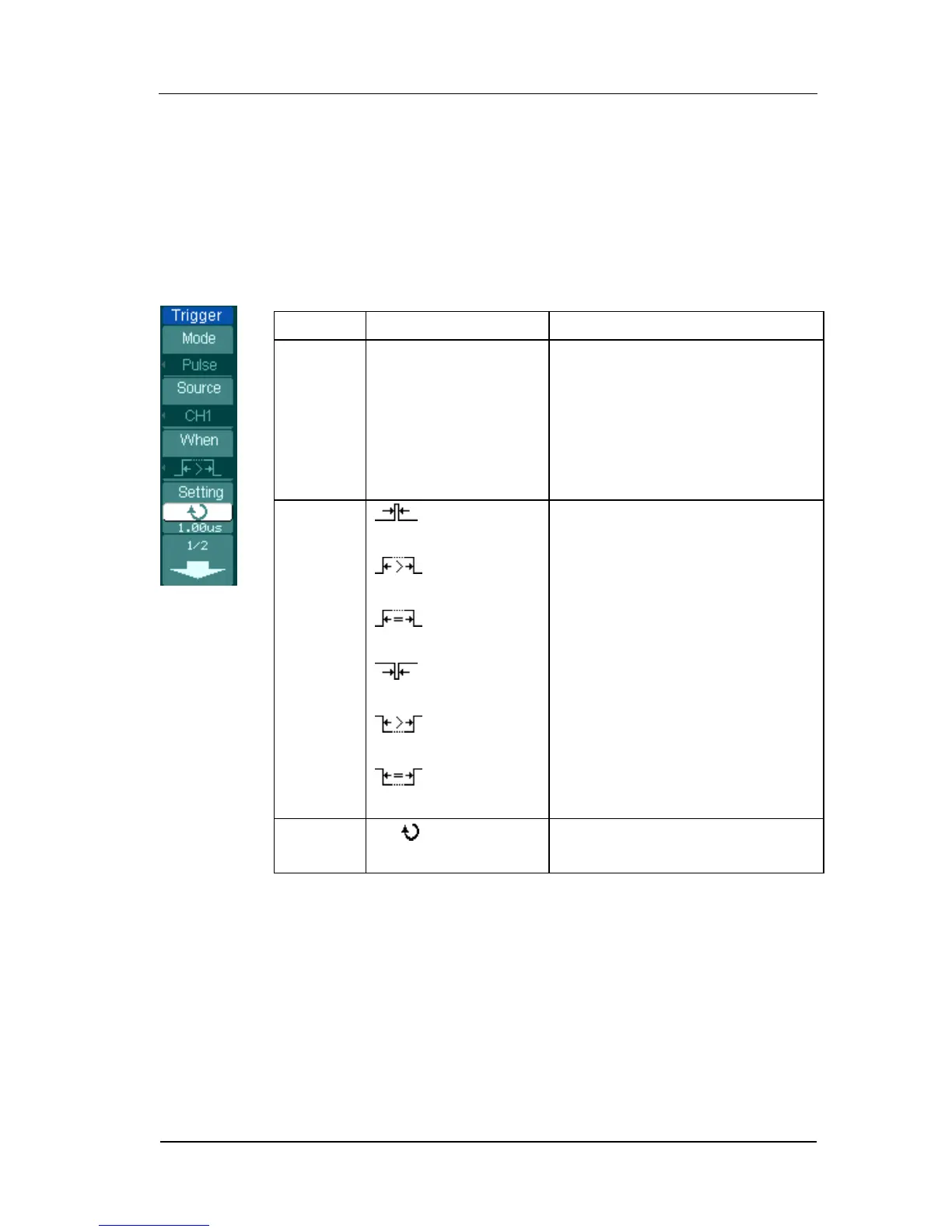

Figure 2- 43 Table 2- 21 The Pulse Trigger menu (page 1/2)
Menu
Settings
Comments
Source
CH1
CH2
EXT
D15-D0
Selects CH1 as trigger signal
Select CH2 as trigger signal
Select EXT TRIG as trigger signal
Select a digital channel in
D15-D0 as trigger source( Only
for DS1000D series)
When
(+Pulse width
less than)
(+Pulse width
more than)
(+Pulse width
equal to)
(-Pulse width
less than)
(-Pulse width
more than)
(-Pulse width
equal to)
To select pulse condition
Settings
<Width>
Set required pulse width
