User’s Guide for DS1000E, DS1000D Series
2-61

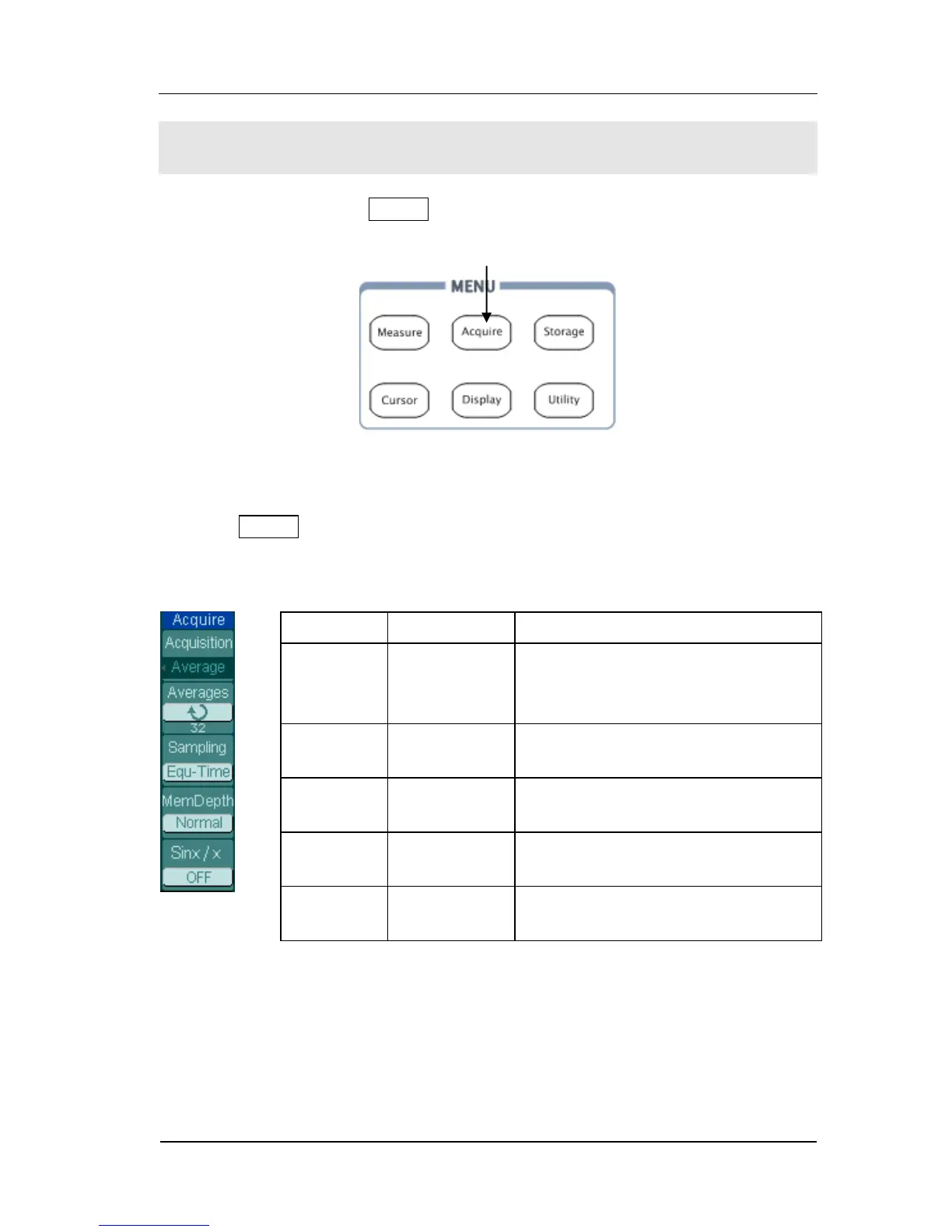

To Set up the Sampling System
As figure 2-66 shows, the Acquire button at the MENU of the front panel.
Figure 2- 66
The Front panel MENU
Press the Acquire button, the interface menu as follows:
Figure 2- 67 Table 2- 41 The Acquire menu
Menu
Settings
Comments
Acquisition
Normal
Average
Peak Detect
Normal Acquisition mode
Average Acquisition mode
Peak Detect Acquisition mode
Averages
2 to 256
Step by multiple of two. Set average
times from 2 to 256
Sampling
Real-Time
Equ-Time
Real-time sampling mode
Equivalent sampling mode
Mem
Depth
Long Mem
Normal
Set up memory as 512k or 1M
Set up memory as 8k or 16k
Sinx/x
ON
OFF
Set the insert mode to sinx/x
Set the insert mode to line
Acquire setup button
