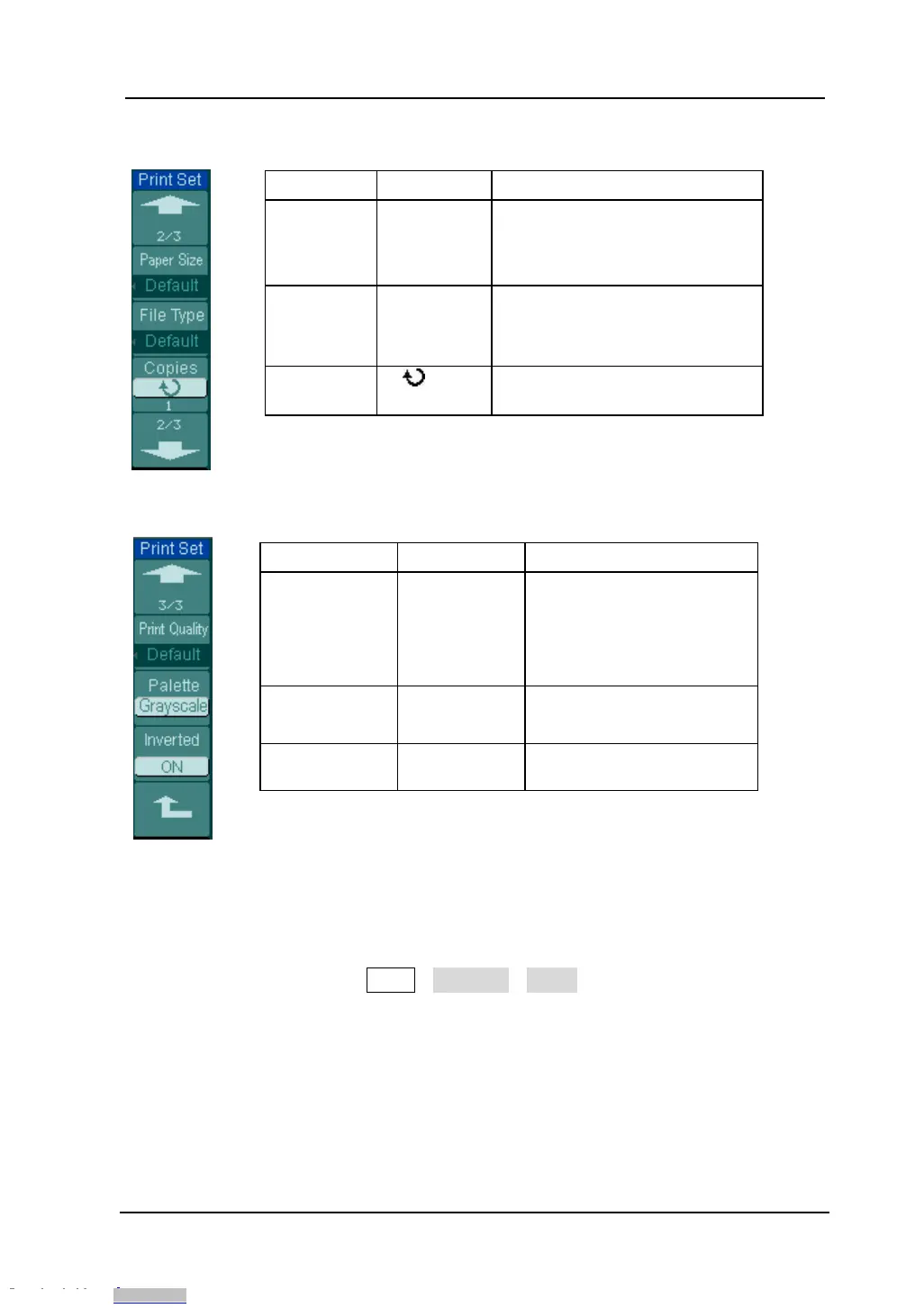

Figure 2- 112 Table 2- 73 The Print Set Menu (“PictBridge” Mode, Page2/3)
Figure 2- 113 Table 2- 74 The Print Set Menu (“PictBridge” Mode, Page3/3)
3. Print:
Make sure the Printer has been connected and the print settings are all ready
before printing. Then, press Utility Print set Print to execute print operation.
Menu Settings Comments
Paper Size
Default
A4, A5 and
so on
Select the print paper size:
default,
A2, A3, A4, A5, A6
and B5
File Type
Default
Bmp
Exif/Jpeg
Select the print image type
Copies
<1-999>
Adjust the print copies
Menu Settings Comments
Print Quality
Default
Normal
Draft
Fine
Select the print quality
Palette
Gray scale
Color
Select the palette
Inverted
ON
OFF
Turn the invert on or off
