User’s Guide for DS1000E, DS1000D Series
1-9

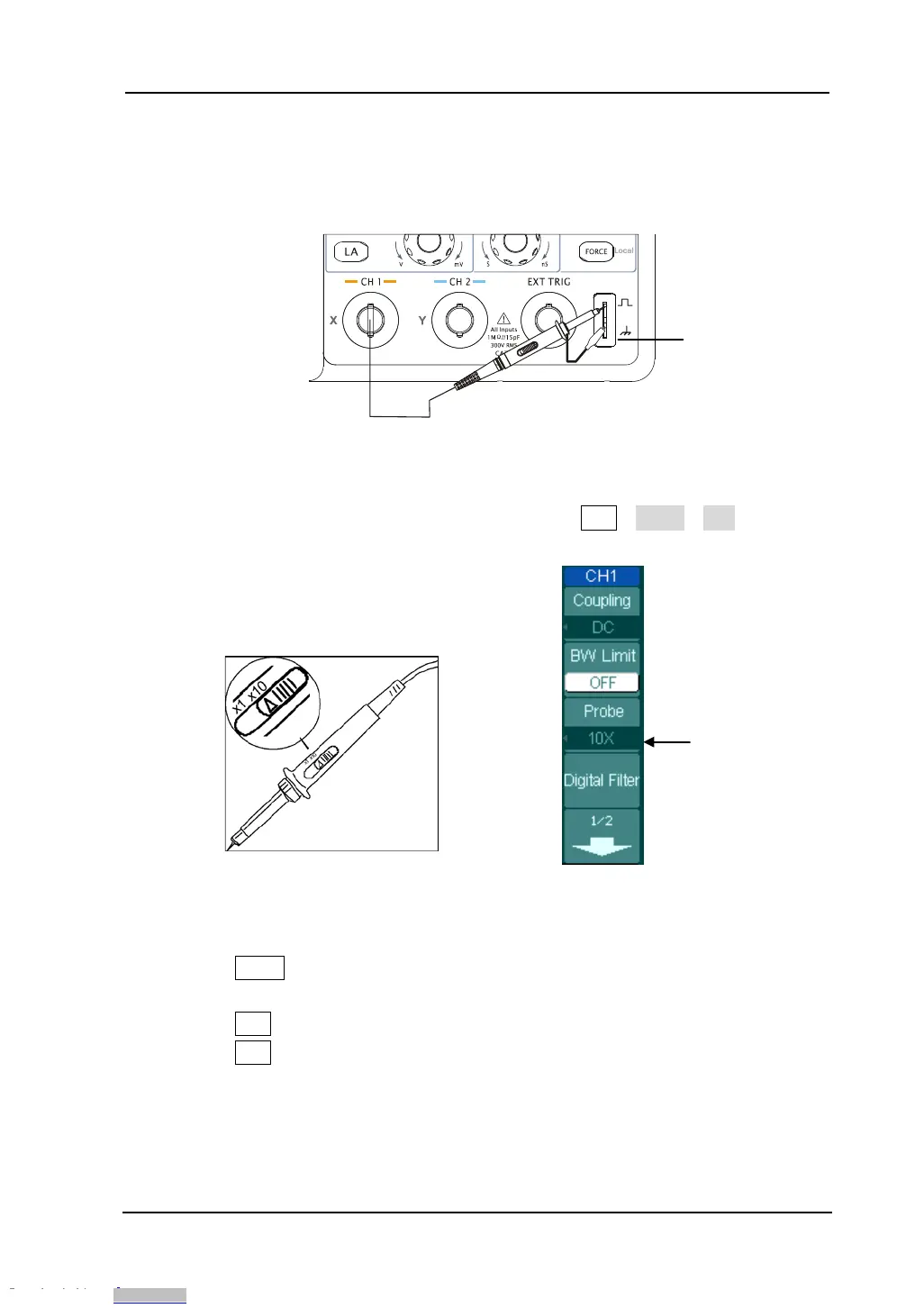

 Align the slot in the probe connector with the button on the CH1 BNC.
 Push to connect, and twist to the right to lock the probe.
 Attach the probe tip and ground lead to the PROBE COMP connector.
Figure 1- 10
Attach the probe
② Set the probe attenuation to 10X. To do this, push CH1→Probe→10X.
Figure 1- 11 Figure 1- 12
Set attenuation on the probe Set attenuation in the menu
③ Push the AUTO button. Within a few seconds, a square wave will display.
④ Push the CH1 button again to turn off Channel1.
Push the CH2 button to turn on channel2, repeat steps 2 and 3.
NOTE: The signal output from Probe compensator should only be used for probe
compensation, not for calibration.
Probe compensator
Probe scale
