User’s Guide for DS1000E, DS1000D Series
2-4

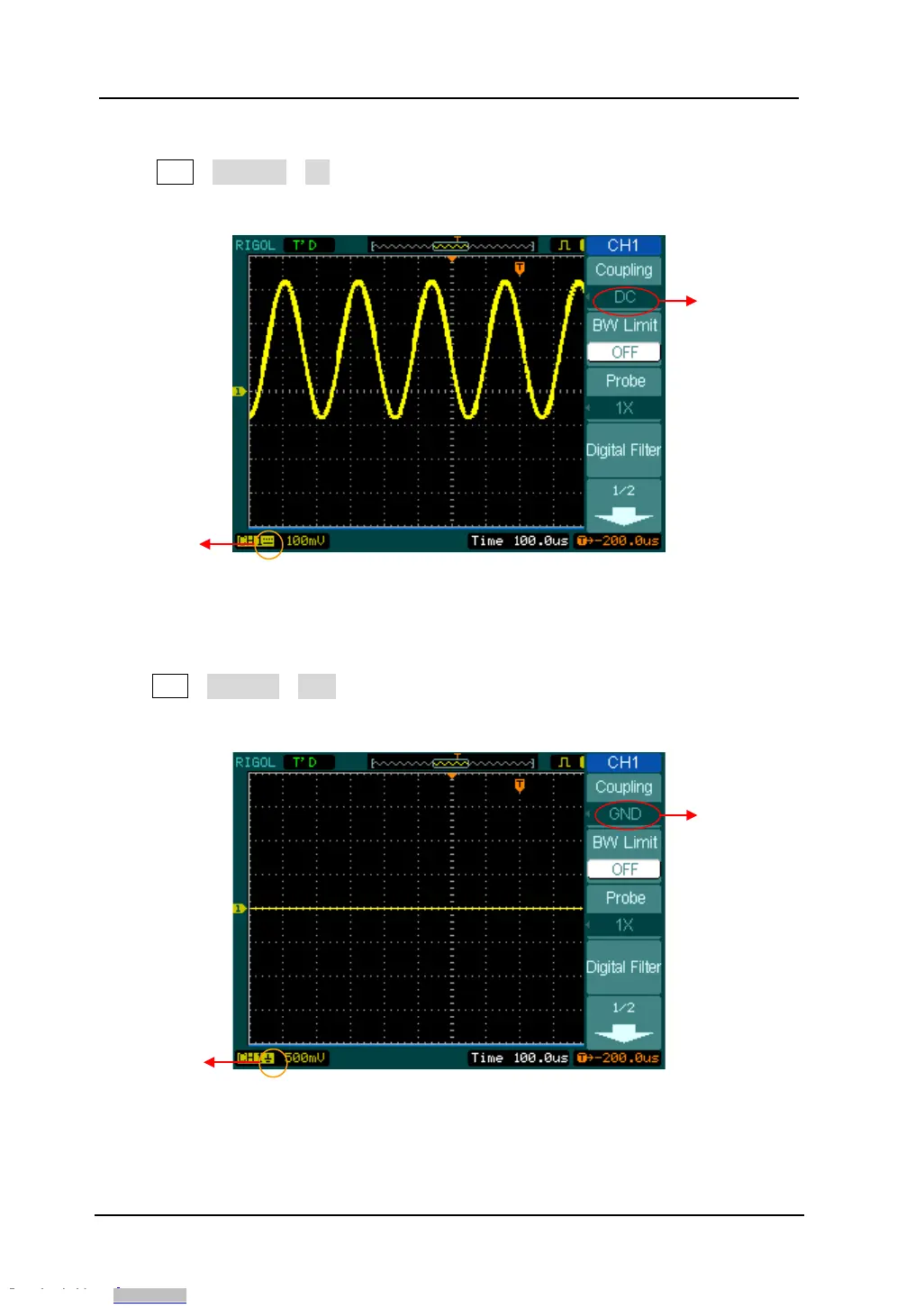

Press CH1→Coupling→DC, to set “DC” coupling. It will pass both AC and DC
components of the input signal. The waveform is displayed as Figure 2- 4:
Figure 2- 4
DC coupling setting
Press CH1→Coupling→GND, to set “GND” coupling, it blocks the input signal.
The screen displays as Figure 2-5:
Figure 2- 5
GND coupling setting
GND coupling
setup
GND coupling
status symbol
DC coupling
setup
DC coupling
status symbol
