Coarse/Fine Shortcut key:
To change Coarse/Fine setting, not only by menu but also by pressing vertical
knob
6. To invert a waveform
Invert turns the displayed waveform 180 degrees, as respect to the ground level.

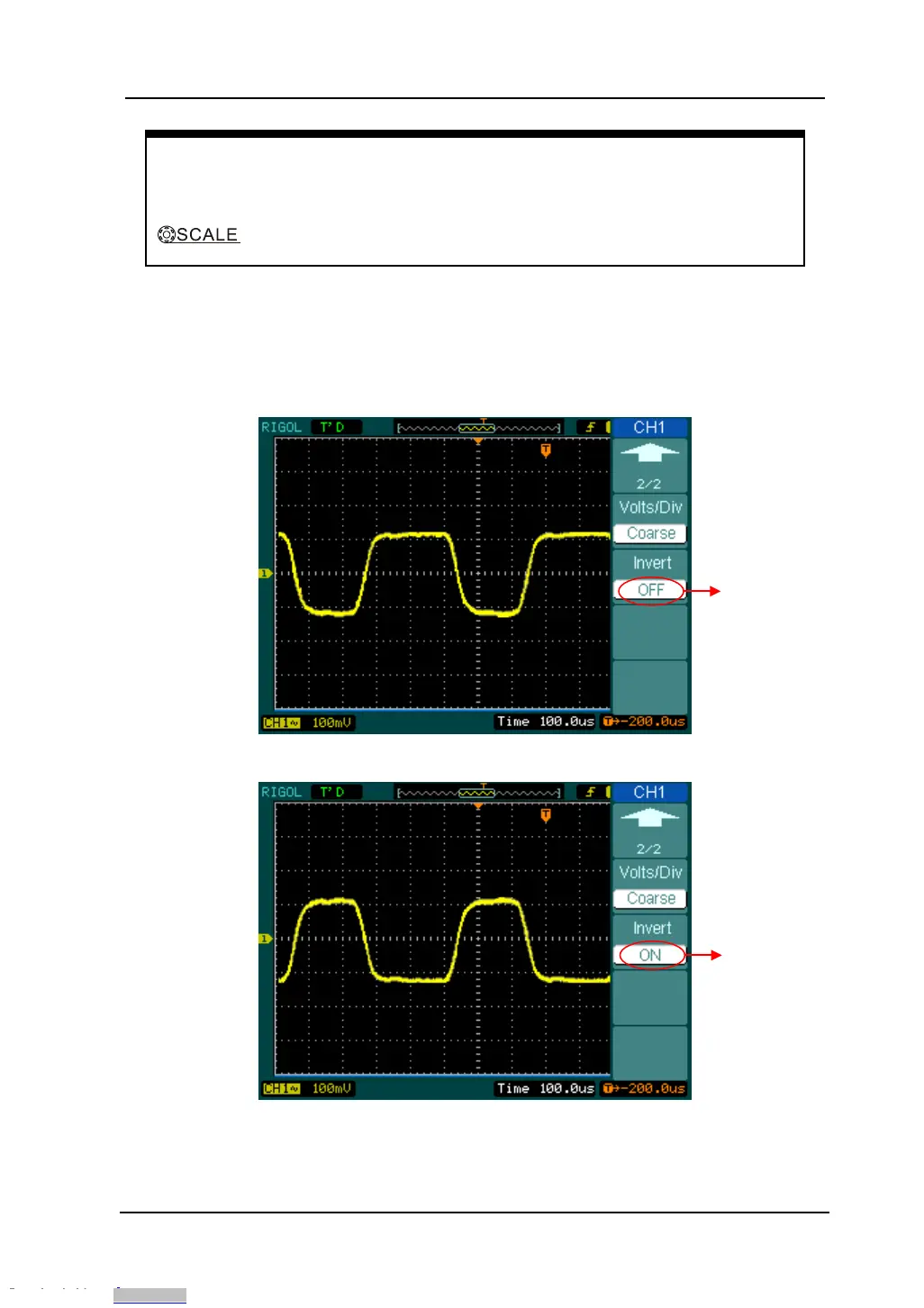

Figure 2- 13 and Figure 2- 14 show the changes after inversion.
Figure 2- 13 The waveform before inversion
Figure 2- 14 The waveform after inversion
Invert ON
Invert OFF
