Rigol DS1000E Series User Manual

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series
2-20
5. Displaying a Reference Waveform

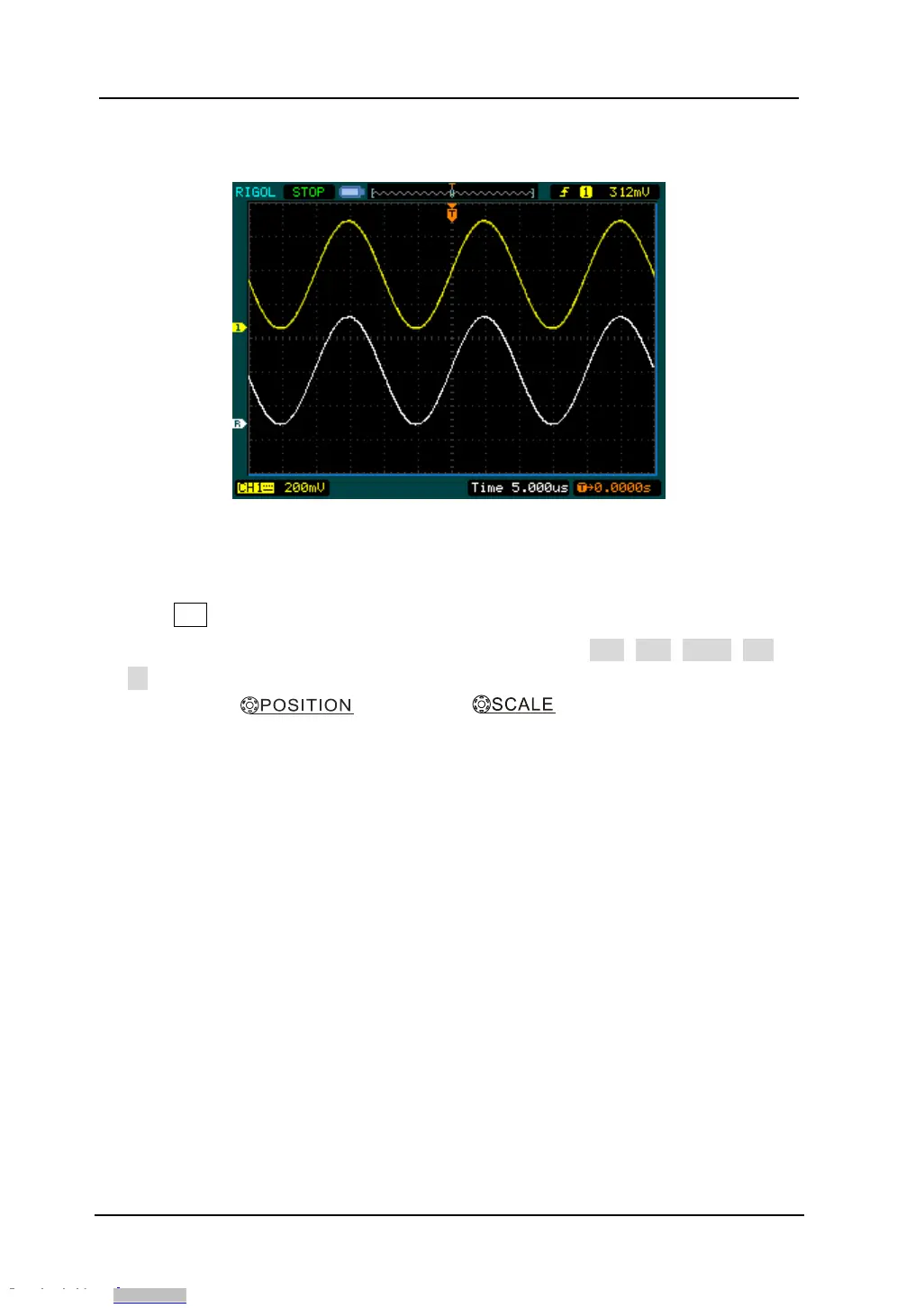

Figure 2- 30
Reference waveform display
1. Push REF button to show the reference waveform menu.
2. Press soft button No.1 to select the reference channel: CH1, CH2, MATH, FFT or
LA (DS1000D series).
3. Turn vertical and vertical to adjust the REF waveform
to a suitable position.
4. Press soft button No.2 to select the save location of REF waveform.
5. Press soft button No.3 to save the waveform as REF.
NOTE: The reference function is not available in X-Y mode.
