User’s Guide for DS1000E, DS1000D Series
2-43

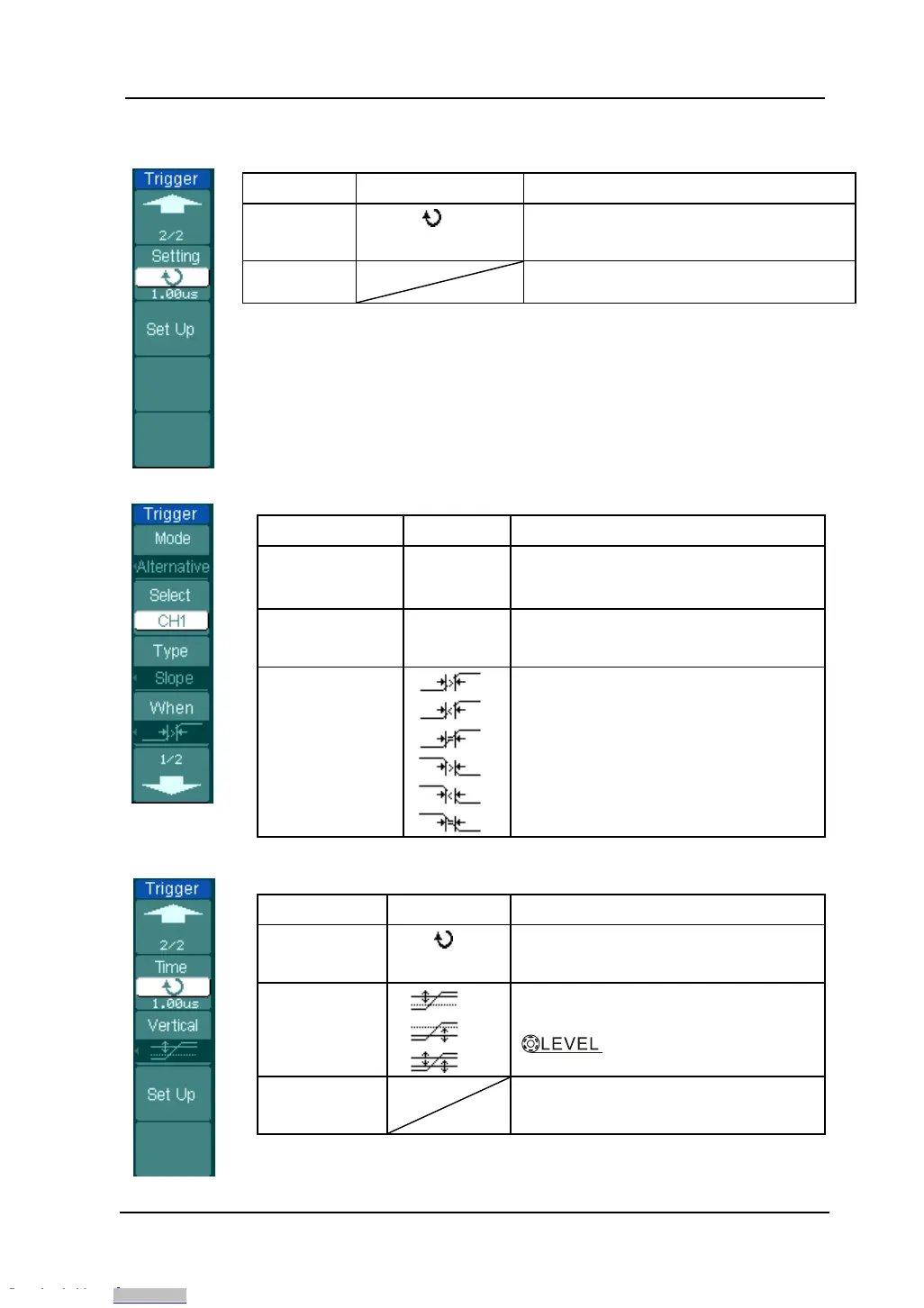

Figure 2- 54 Table 2- 30 The Alternate menu (Trigger Type: Pulse, Page 2/2)
Menu Settings Comments
Setting
<
pulse width>
Set the width of the pulse
Set Up To go to set up menu. See table 2-38
Figure 2- 55 Table 2- 31 The Alternate menu (Trigger Type: Slope, Page 1/2)
Menu Settings Comments
Select
CH1
CH2
Set trigger mode for Channel 1
Set trigger mode for Channel 2
Type Slope
Set Slope Trigger for the vertical
channel
When Set trigger condition
Figure 2- 56 Table 2- 32 The Alternate menu (Trigger Type: Slope Page 2/2)
Menu Settings Comments
Time
<
Time Set >
Set slope time
Vertical
Select the level to be adjusted by
Set Up
To go to set up menu
. See table
2-38
