User’s Guide for DS1000E, DS1000D Series
2-55

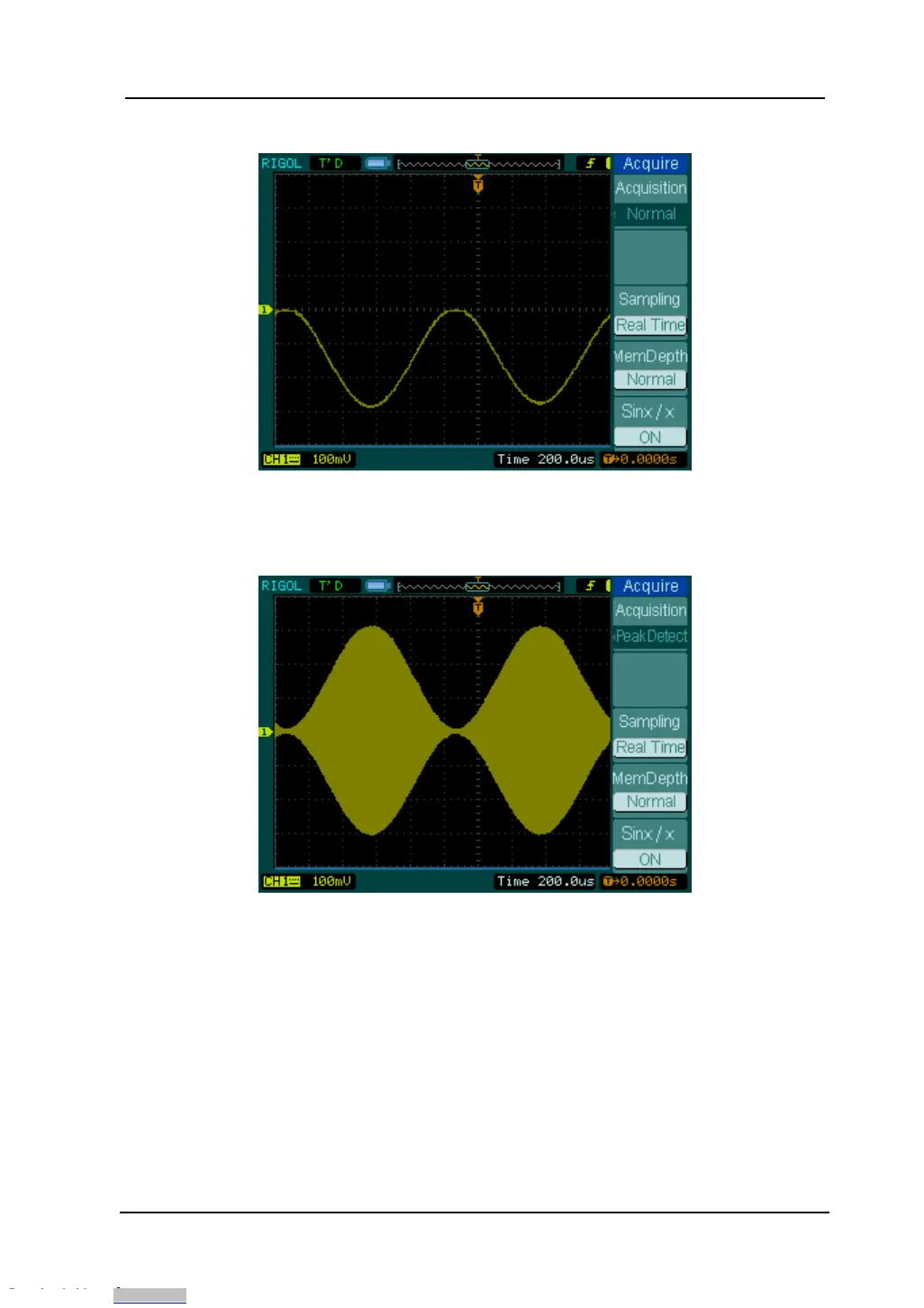

Figure 2- 71
Signal without Peak Detect Acquisition
Figure 2- 72
Signal with Peak Detect Acquisition
Stop Acquisition: When the scope is acquiring waveforms, the waveforms is in a
live status; when acquisition is stopped, frozen waveform will be displayed, the
position and scale can still be adjusted by vertical control and horizontal control.
