Rigol DS1000Z-E Series Quick Guide

RIGOL
DS1000Z-E Quick Guide
15
User Interface
DS1000Z-E provides 7.0 inch WVGA (800*480) TFT LCD.

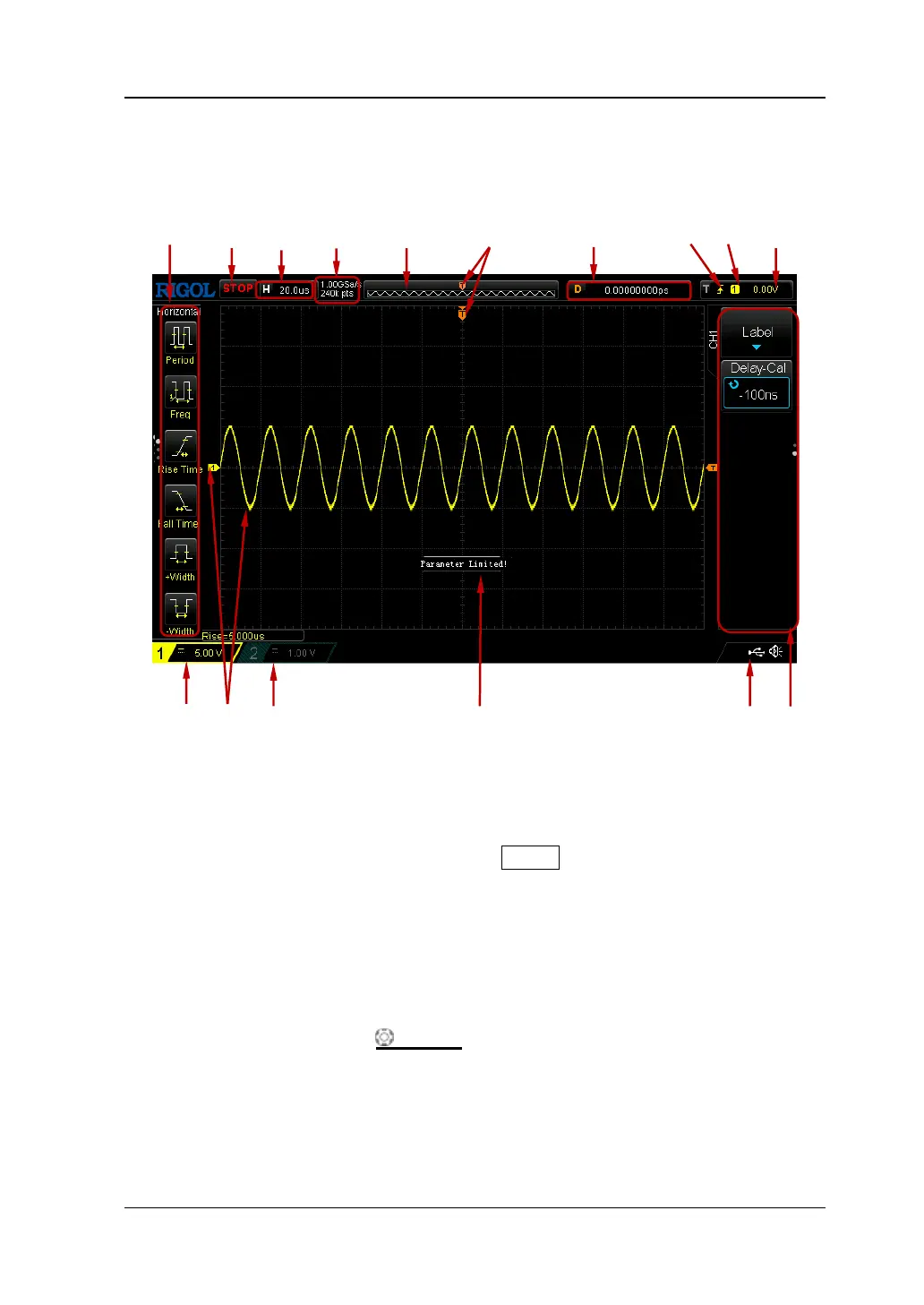

Figure 11 User Interface
1. Auto Measurement Items
Provide 20 horizontal (HORIZONTAL) and 17 vertical (VERTICAL) measurement
parameters. Press the softkey at the left of the screen to activate the
corresponding measurement item. Press MENU continuously to switch between
the horizontal and vertical parameters.
2. Status
Available states include RUN, STOP, T’D (triggered), WAIT and AUTO.
3. Horizontal Time Base
 Represent the time per grid on the horizontal axis on the screen.
 Use HORIZONTAL SCALE to modify this parameter. The range
available is from 5 ns to 50 s.
4. Sample Rate/Memory Depth
 Display the current sample rate and memory depth of the oscilloscope.
 The sample rate and memory depth will change in accordance with the
11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10
