1. Mask setting
Press Utility→Pass/Fail→Mask Setting to go to the following menu.

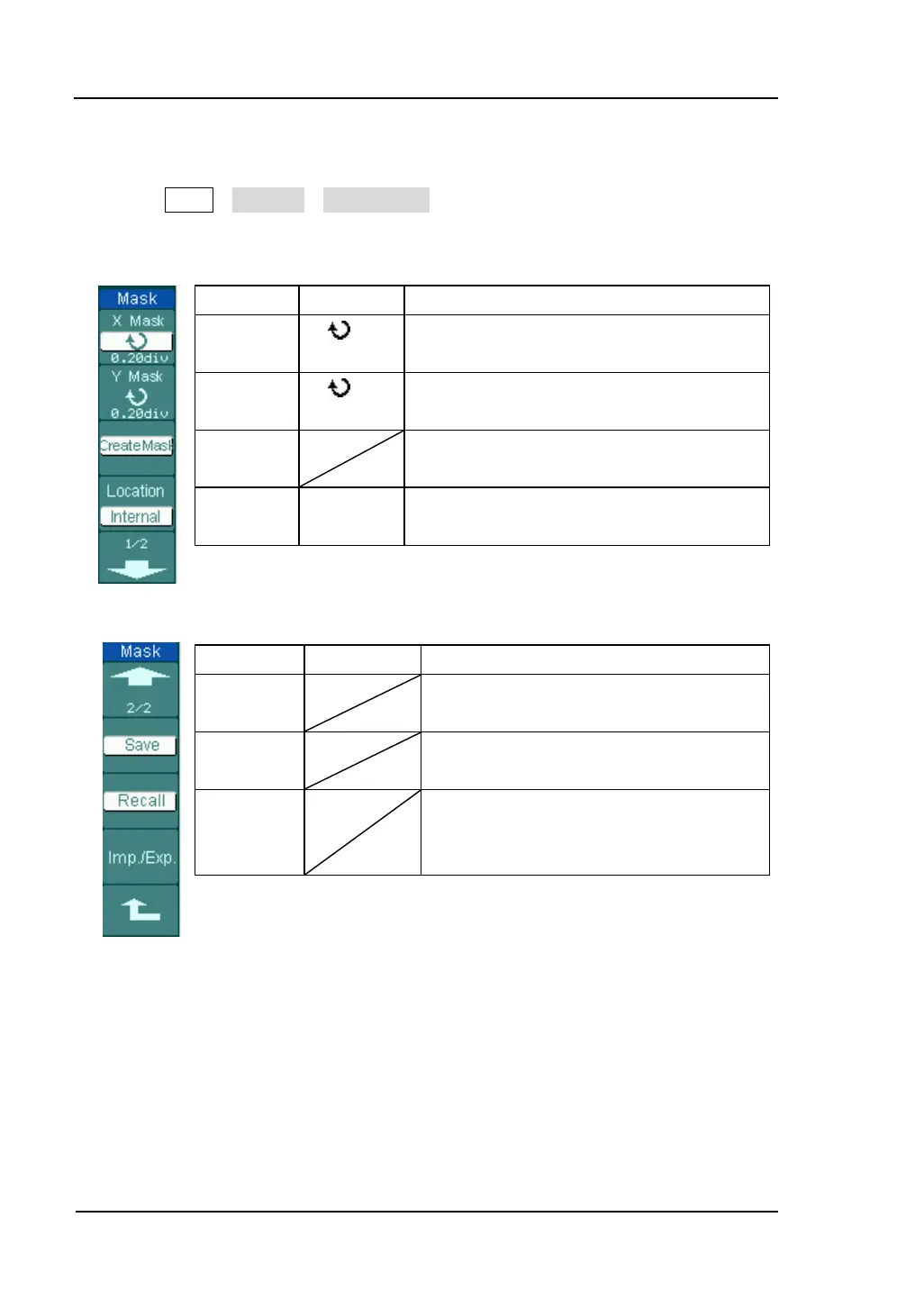

Figure 2-103 Table 2-57 The Mask setting menu (Page 1/2)
Menu Settings Comments
X Mask
<x div>
Set horizontal clearance to the waveform
(0.04div-4.00div).
Y Mask
<y div>
Set vertical clearance to the waveform
(0.04div-4.00div).
Create
Mask
Create a test mask according to the above
clearance.
Location
Internal
External
Set the memory location of the mask
files.
Figure 2-104 Table 2-58 The Mask setting menu (Internal, Page 2/2)
Menu Settings Comments
Save
Store created test mask into internal
memory.
Recall
Recall mask setting file from internal
memory.
Imp./Exp.
Go to import/export menu
(same as
REF import/export menu.
see table
2-15).
