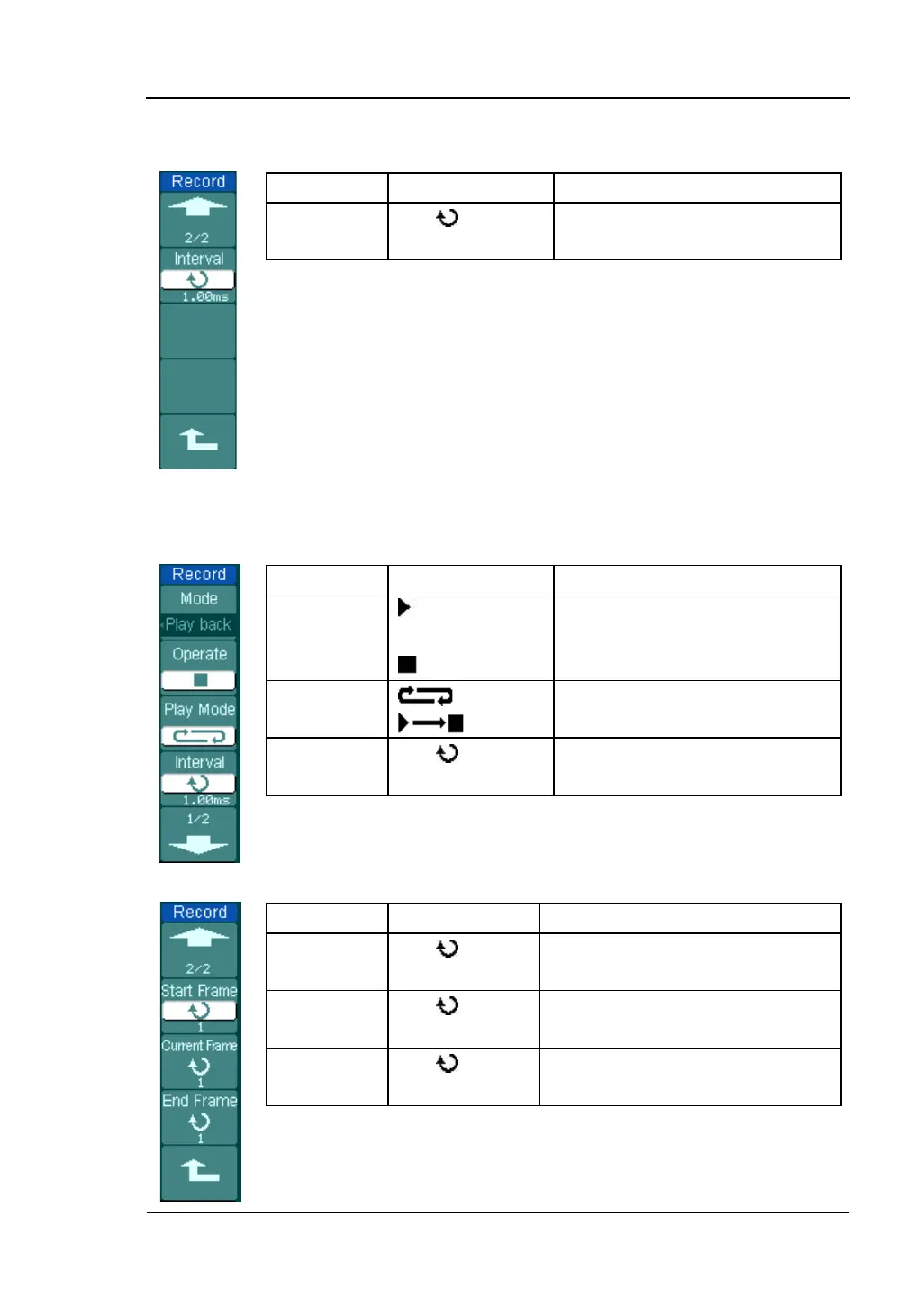

Figure 2-108 Table 2-62 The Record menu (Page 2/2)
Menu Settings Comments
Interval
<1.00ms-1000s>
Set time interval between record
frames.
3. Play Back: Play back the recorded waveforms.
Figure 2-109 Table 2-63 The Play Back menu (Page 1/2)
Menu Settings Comments
Operate
(Run)
(Stop)
Play stopped, press to Start
playback.
Press to stop playing.
Play mode
Set repeat play mode.
Set single time play mode.
Interval
<1.00ms-20s>
Set up interval value between
frames.
Figure 2-110 Table 2-64 The Play Back menu (Page 2/2)
Menu Settings Comments
Start Frame
<1-800>
Set start frame.
Current
Frame
<1-800>
Select current frame to be played.
End Frame
<1-800>
Set End frame.
