User’s Guide for DS1000B Series
2-97

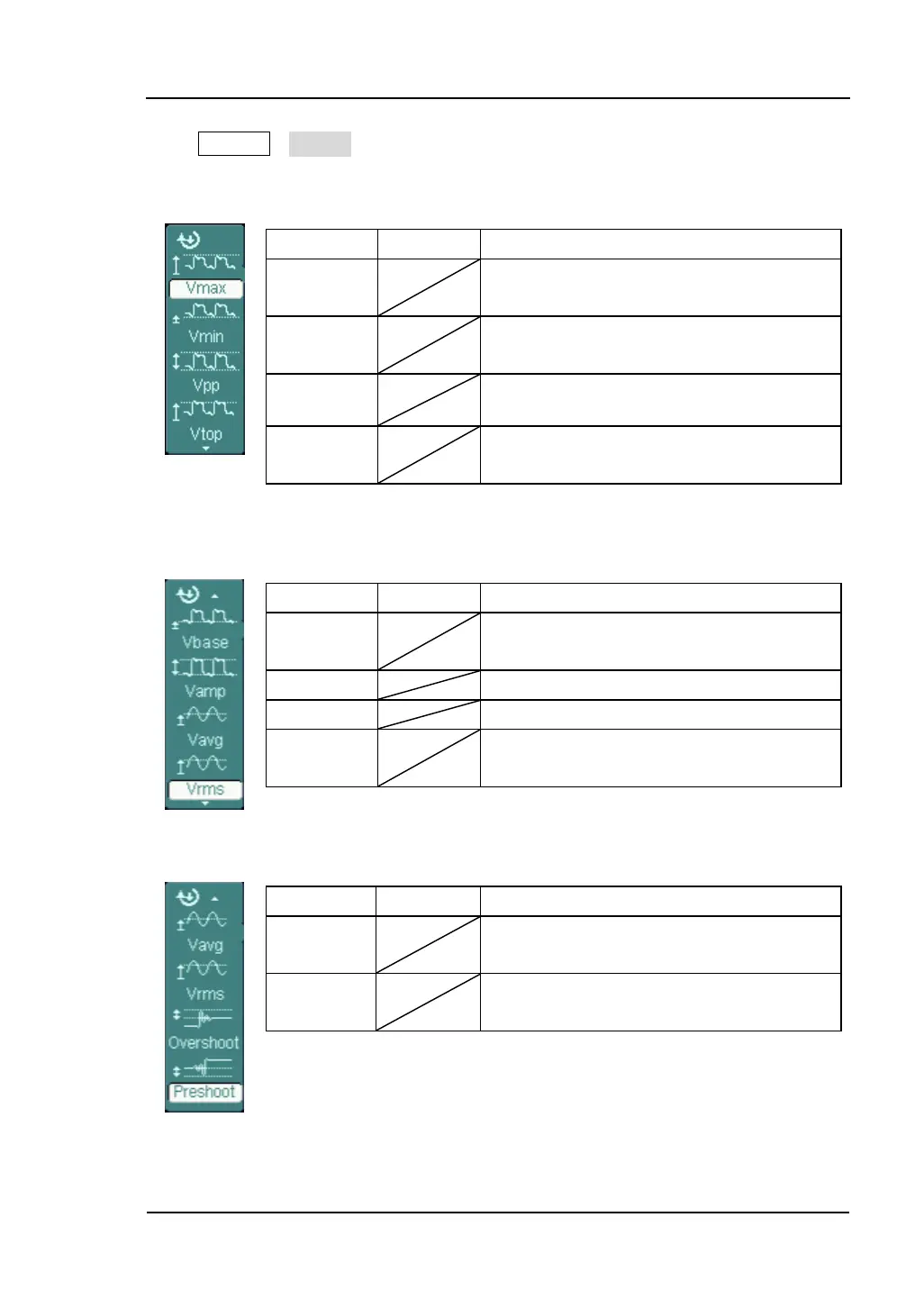

Press Measure→Voltage button, and go to the following menu.
Figure 2-132 Table 2-79 The Voltage Measurement menu (Page 1/3)
Menu Settings Comments
Vmax
Measure maximum v
oltage of a
waveform.
Vmin
Measure minimum voltage of a
waveform.
Vpp Measure Peak-to-Peak Voltage.
Vtop
Measure a flat top voltage of a square
waveform.
Figure 2-133 Table 2-80 The Voltage Measurement menu (Page 2/3)
Menu Settings Comments
Vbase
Measure a flat base voltage of a square
waveform.
Vamp Measure voltage between Top and Base.
Vavg Measure average voltage of a waveform.
Vrms
Measure R
oot Mean Square Voltage of a
waveform.
Figure 2-134 Table 2-81 The Voltage Measurement menu (Page 3/3)
Menu Settings Comments
Overshoot
Measure overshoots in percentage of an
edge.
Preshoot
Meas
ure preshoot in percentage of an
edge.
