RIGOL
Users Guide for DS1000B Series
2-9
3. To set up Probe Attenuation
The oscilloscope allows selecting the attenuation factor for the probe. The
attenuation factor changes the vertical scaling of the oscilloscope so that the
measurement results reflect the actual voltage levels at the probe tip. Figure 2-8
shows an example for using a 1000:1 probe and its attenuation factor.

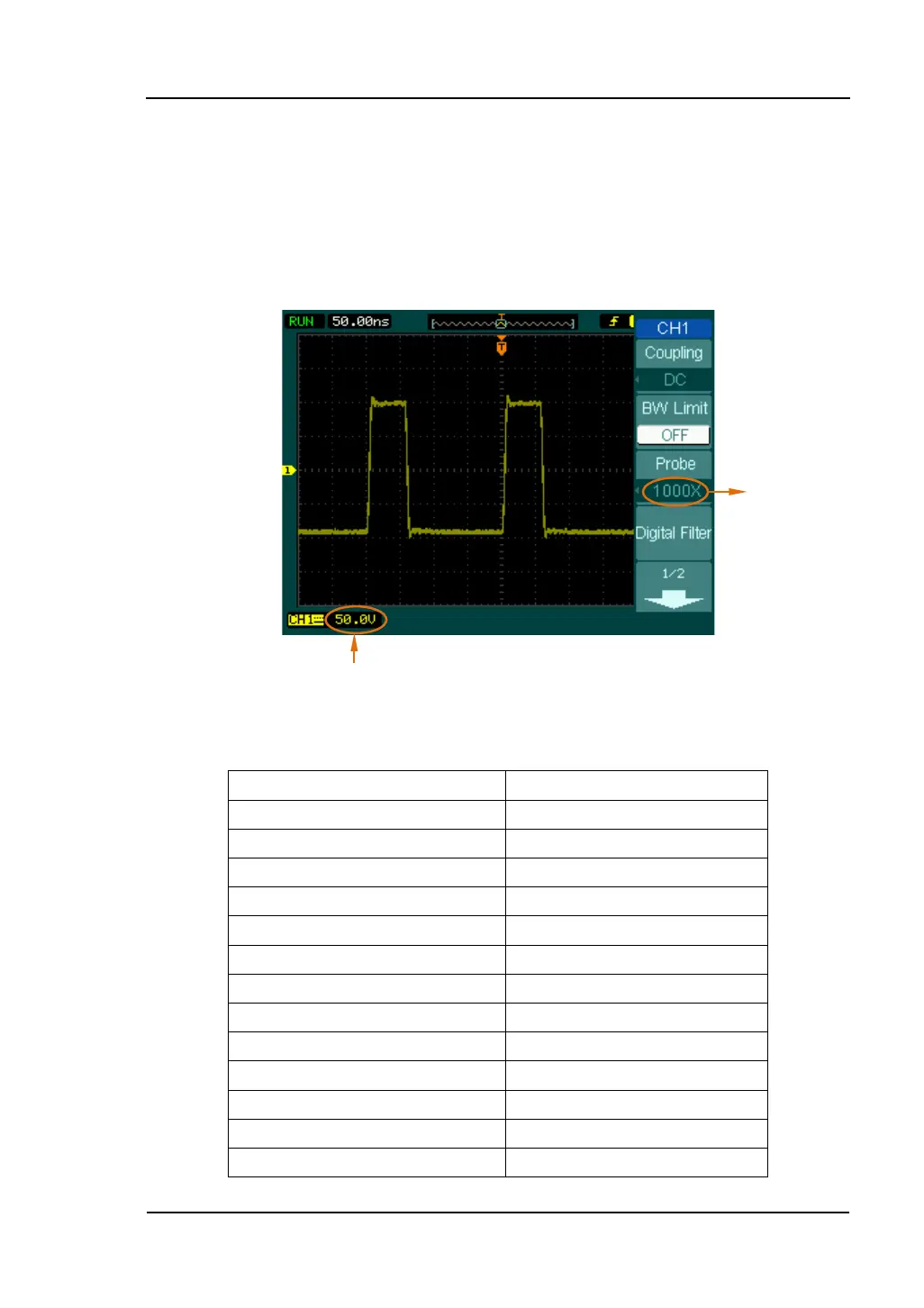

Figure 2-8 Set up probe attenuation coefficient
Table 2-4 Probe setting
Probe Attenuation Factors Corresponding Settings
1:1000 0.001X
1:100 0.01X
1:10 0.1X
1:1 1X
2:1 2X
5:1 5X
10:1 10X
20:1 20X
50:1 50X
100:1 100X
200:1 200X
500:1 500X
1000:1 1000X
Probe
Attenuation
Vertical volts/div
