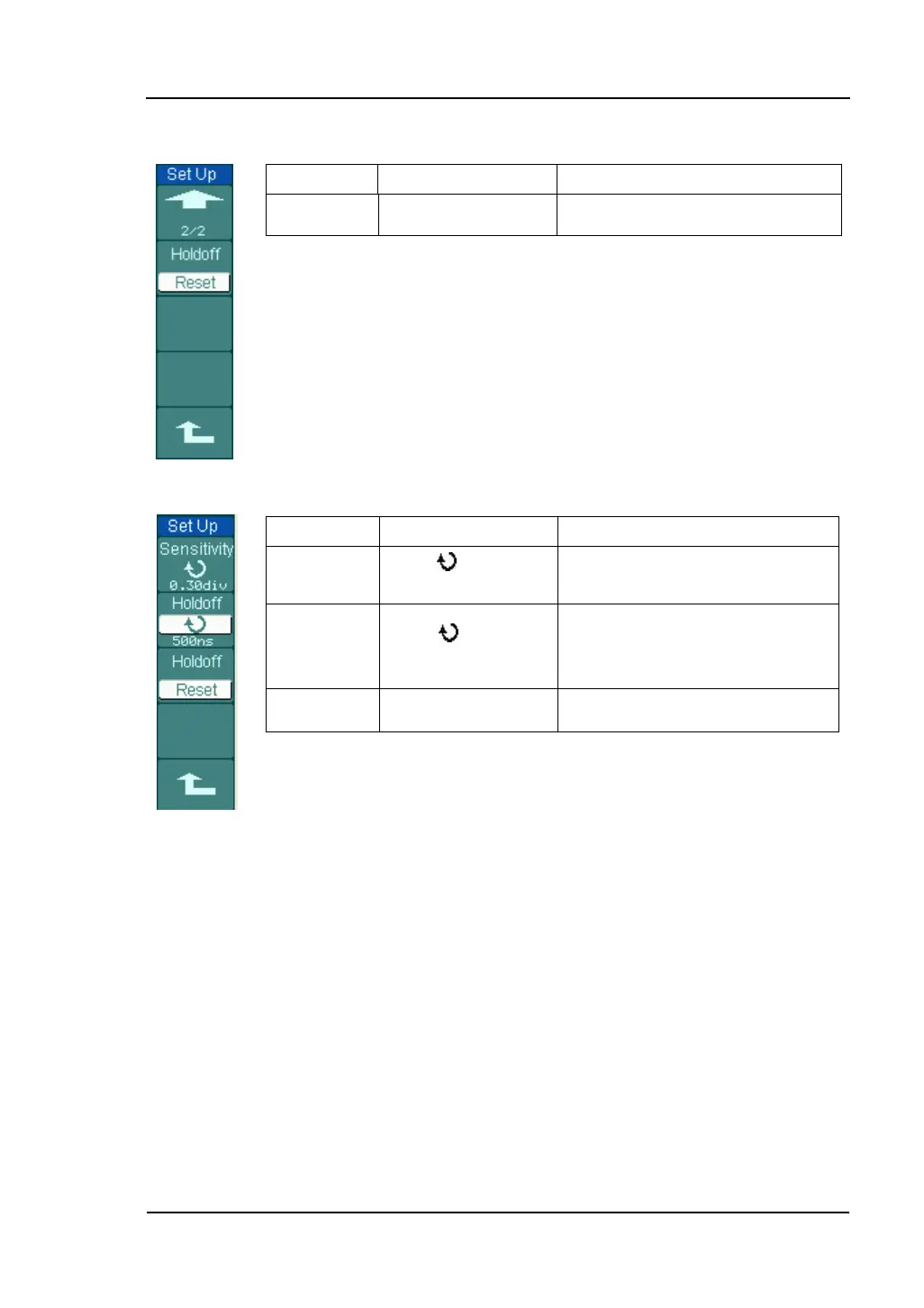

Figure 2-56 Table 2-35 Page 2/2 Settings for Edge, Pulse and Pattern Triggers
Menu Settings comments
Holdoff
Reset Reset Holdoff time to 500ns.
Figure 2-57 Table 2-36 Settings for Video Trigger
Menu Settings Comments
Sensitivity
<Sensitivity Setting>
Set trigger sensitivity between
0.1div to 1.00div.
Holdoff
<Holdoff Setting>
Set time slot before another
trigger event between 100ns to
1.5s.
Holdoff Reset Reset Holdoff time to 500ns.
