User’s Guide for DS1000B series
2-58

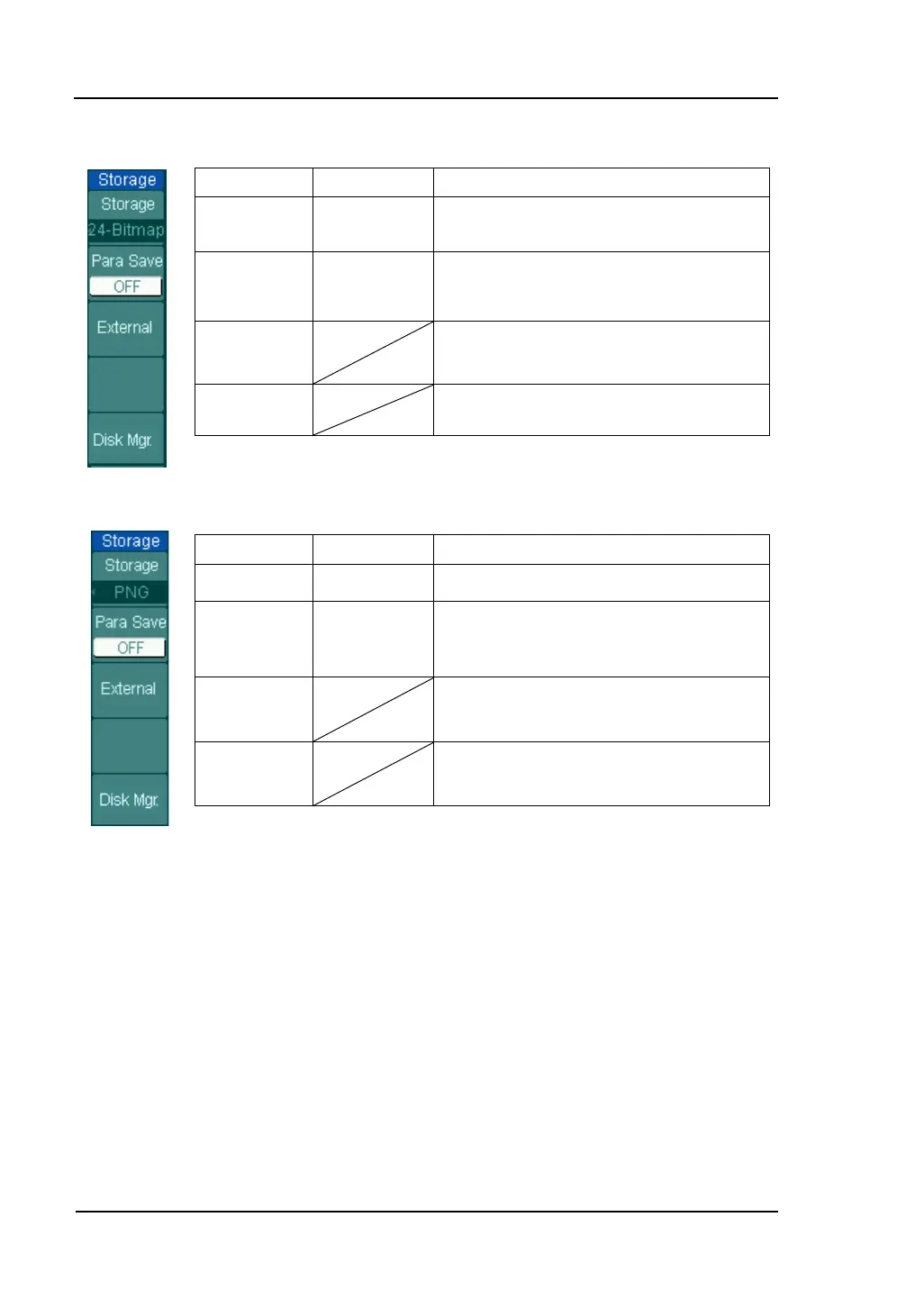

Figure 2-71 Table 2-42 The Storage menu (Bitmap storage)
Menu
Settings Comments
Storage
8-Bitmap
24-Bitmap
Create or delete 8bits Bitmap files.
Create or delete 24bits Bitmap files.
Para Save
ON
OFF
Save the current oscilloscope settings
in different format with the same file
name.
External
Go to menu for external memory
operation (see Table 2-47).
Disk Mgr.
Go to disk manage menu (see Table
2-48).
Figure 2-72 Table 2-43 The Storage menu (PNG storage)
Menu Settings Comments
Storage
PNG Create or delete PNG format files.
Para Save
ON
OFF
Save the current oscilloscope settings
in different format with the same file
name.
External
Go to menu for external memory
operation (see Table 2-47).
Disk Mana.
Go to disk manage menu (see Table
2-48).
