User’s Guide for DS1000B series
2-62
U-disk Selection

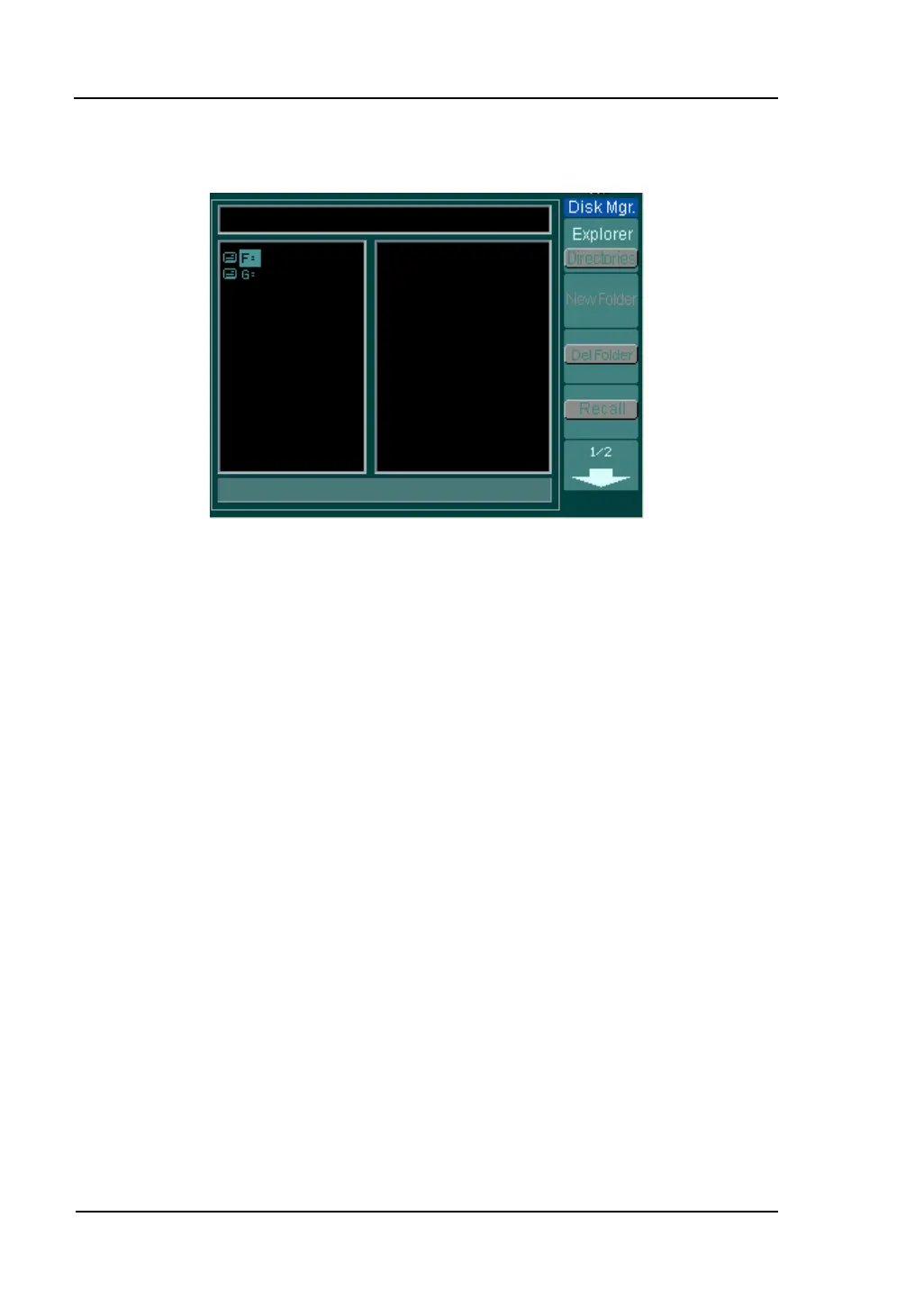

Figure 2-78 U-disk selection
DS1000B series have two USB Host ports on the front and rear panel. When both
ports were inserted USB flash drive, the screen will appear a U-disk selection
interface as Figure 2-78. Turn the multifunction knob to choose the driver. The front
one marked “F:” and the rear one “G:”.
